Kramer 670T
HDMI over Fiber Optic Transmitter

OUR PART #:  670T

The 670T is a high-performance fiber optic transmitter for HDMI signals.
Learn More
Sale Price: $971.90
List Price: $1,495.00
You save 35%!
Write the first review.
Kramer 670T
In Stock

Related Products

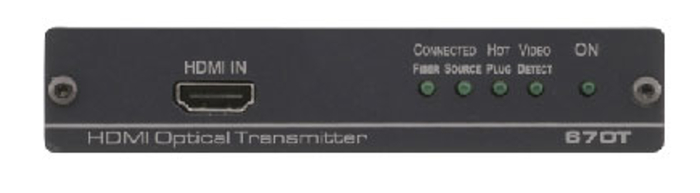

The 670T is a high-performance fiber optic transmitter for HDMI signals. The unit converts an HDMI signal to light pulses that it transmits over one single fiber optic cable to the 670R receiver that converts them back to an HDMI signal.

Kramer 670T Features:

  • Max. Data Rate - Up to 3.5Gbps
  • Supports 4k x 2k Resolution
  • HDTV Compatible
  • HDCP Compliant
  • EDID PassThru - Passes EDID signals between the source and display
  • HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC)
  • 3D Pass-Through
  • Signal Transmission - Transmits four TMDS video channels as well as one low-speed channel for passing HDCP, EDID and a Hot Plug Detect (HPD) signal over one multimode fiber
  • System Range - 1700m (5570ft)
  • Cable - Multimode fiber optic OM3 cable with SC connectors
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rackspace with the optional RK-3T rack adapter

Kramer 670T Specifications:

  • Inputs: HDMI connector.
  • Outputs: 1 optical connector.
  • Bandwidth: Supports up to 3.5Gbps bandwidth per graphic channel.
  • Compliance with HDMI Standard: Supports HDMI 1.3, using fiber optic communication links and DDC2B.
  • Extension Limit: 5570 feet (1700m) for 1080p/60Hz.
  • Fiber-Optic Connection: SC connectors for multimode (OM3) fiber cable (not supplied with the unit).
  • Indicator LEDs: Video, source, acceptor fiber and on LEDs.
  • Power Source: 5V DC, 250mA.
  • Dimensions (WxDxH): 4.7" x 3.1" x 1.08" (12cm x 7.95cm x 2.76cm)
  • Weight: 0.67lbs (0.3kg) approx. each.
  • Accessories: 2 power supplies (5V/2A), 2 bracket installation kits.
  • Options: HDMI/HDMI male to male cable.
