Kramer RC-8IR-NV
8-Button Universal Room Controller with IR Learning

OUR PART #:  RC-8IR-NV

The RC-8IR is an 8-button controller for multimedia rooms. It controls A/V components as well as lights or screens.
Learn More
Selected Model Price: $476.00
List Price: $595.00
Save up to 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer RC-8IR-NV
Select model: (shipping times are approximate)
Qty:

Similar Products

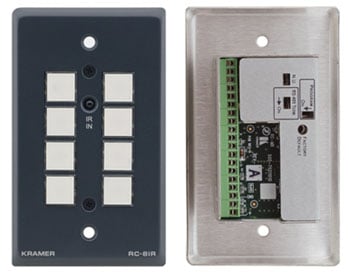

The RC-8IR is an 8-button controller for multimedia rooms. It controls A/V components as well as lights or screens. Each button has 15 commands for up to 120 total commands in one gang wall plate. It features an Ethernet port for easy setup with included RC configuration software and unit control via internet connection. The Ethernet port also has 5 addressable IP addresses so you can control up to 5 networked A/V devices. Other features include 4 IR emitters (2 IR ports w/ 2 branches each), IR learning function. 2 relay contact closure ports, 2 bi-directional RS232 and RS485 ports, and a lockout feature.

Features:

  • Configurable Back-Lit Buttons – Functions and/or macros are programmed into the 8 buttons which can be labeled for easy operation
  • Command Programming - IR learning or Ethernet
  • Control Options- 1 Ethernet, 2 RS-232, 4 (2x2) IR Emitters, 1 RS-485 & 2 Relays
  • Macro Mode - up 15 commands with a single button (maximum 120 commands)
  • Wall Plate Size

Specifications:

  • Ports: 2 RS-232 on terminal block connectors; 1 RS-485on terminal block connectors; 1 ETHERNET RJ-45 port
  • Outputs: 2 relays on terminal block connectors (250Visolated, 1A); 2 IR emitters on terminal block connectors (for RC-6IR andRC-8IR)
  • Power Source:  12 VDC, 155mA
  • Accessories:  Power supply, Java based controlsoftware (internal), Windows®-based Kramer control software
  • Options:  Dual IR emitter cable, single IRemitter cable, IR extension cable
  • Dimensions (W x D x H): 4.49" x 1.70" x 2.72"
  • Weight: 0.67 lbs
