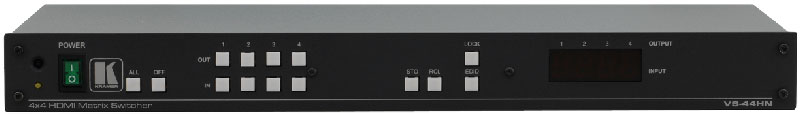

Kramer VS44HN
4x4 HDMI Matrix Switcher

OUR PART #:  VS44HN

The Kramer VS-44HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
Learn More
Our Price: $1,596.00
List Price: $1,995.00
You save 20%!
Write the first review.
Kramer VS44HN
Qty:
In Stock

Related Products

The Kramer VS-44HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Kramer VS-44HN Features:

  • Maximum Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDMI Support - Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
  • 3D Pass-Through.
  • HDCP Compliant.
  • Fast Switching Technology - Reduces switching delay between DVI/HDMI sources.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • EDID Capture- Copies and stores the EDID from a display device.
  • Support for Protocol 2000 and Protocol 3000.
  • Front Panel Lockout.
  • Output Disconnect - Each output.
  • Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed.
  • Flexible Control Options - Front panel, IR Remote, RS-232 (K-Router™ Windows®-based software is included) & Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack "ears" included.

Kramer VS-44HN Specifications:

  • Inputs: 4 HDMI connectors.
  • Outputs: 4 HDMI connectors.
  • Bandwidth: Up to 6.75Gbps data rate (2.25Gbps per graphic channel).
  • Compliance with HDMI Standard: HDMI and HDCP.
  • Resolution: Up to UXGA; 1080p.
  • Power Consumption: 100-240V AC, 50/60Hz, 21VA.
  • Controls: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • Operating Temperature: 0° to +55°C (32° to 131°F).
  • Storage Temperature: –45° to +72°C (–49° to +162°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions: 19” x 7.24” x 1U (W, D, H).
  • Weight: 3.53 lbs. (1.6 kg) approx.
  • Accessories: Power cord, IR transmitter, rack ”ears”.
  • Options: External remote IR receiver cable.
