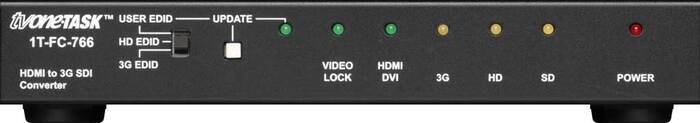

TV One 1T-FC-766
HDMI to 3G/HD/SD-SDI Converter

OUR PART #  1T-FC-766

Our Price: $395.00
In Stock

The 1T-FC-766 HDMI to 3G SDI Converter allows HDMI signals to be displayed on an SDI monitor. The high Bitrate processing ensures fast signal transmission without signal loss and also allows great flexibility in monitor selection since extremely high quality displays can be accomplished on a high resolution SDI monitor. And, even greater utility is provided since the 1T-FC-766 HDMI to 3G SDI Converter allows outputs to two SDI displays simultaneously.

The 1T-FC-766 supports 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i50/60, 1080p50/60 HDMI signals and operates at full range processing speeds of 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.

Integrated audio embeds up to 8 channels PCM 48kHz for HDMI or 2 channels for DVI audio. Also provided are auto video mode detection (SD/HD/3G), compliancy with HDCP copy protection guidelines and support of signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals. Lastly, a locking +5VDC connector protects from undesired disconnects of the external power supply.

Features:

  • Supports HDMI timing of 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60,1080p 50/60
  • Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
  • Simultaneous display of HDMI source on two SDI displays
  • Integrated audio embedded up to 8 channels PCM 48kHz for HDMI or 2 channels for DVI audio
  • Auto video mode detection (SD/HD/3G)
  • Compliant with HDCP copy protection guidelines
    Supports signal transmission distances of up to 300M for SD, 200M for HD and 100M for 3G
  • Locking +5VDC Connectors

Specifications:

  • Video Input
    HDMI 1x via HDMI Connector
  • Video Outputs
    3G-SDI 2x via BNC (SD, HD & 3G SDI)
  • Audio Inputs
    Stereo R+L 2x RCA Connectors
  • Video Processing
    Input Signal Automatic Detection of Type
    Output signal Equalized SDI Output
    SDI throughput Rates 2.970Gb/s and 2.970/1.001Gb/s
    Frequency Bandwidth 225 MHz/Link (HDMI 1.3)
  • Audio Processing
    Integrated Audio Up to 8-Channels, 48Khz Embeddable Audio 2 Channels, Stereo, R&L
  • Video Formats
    SD, HD and 3G Formats 480i, 576i, 720p, 1080i, 1080p24, 3G SDI 1080p 50/60
  • SDI Cable Distance
    Max Distances SD-SDI=300m, HD-SDI=200m, 3G SDI=100m (Belden 1694A)
  • Environmental
    Operating Temperature 0° to +40° C (+32° to +104° F)
    Operating Humidity 20% to 90%, Non-condensing
    Storage Temperature -20° to +60° C (-4° to +140° F)
    Storage Humidity 20% to 90%, Non-condensing
  • Warranty
    Limited Warranty 3 Years Parts and Labor
  • Regulatory Approvals
    Main Unit FCC, CE, RoHS
    Power Supply UL, CUL, CE, PSE, GS, RoHS
  • Mechanical
    Size (H-W-D) 30x200x103.5mm (1.18x7.87x4.07”)
    Weight (Net) 585g (1.29 lbs)
  • Power Requirement
    External Power Supply 5VDC @ 2A, Locking DC
  • Accessories Included
    1x Power Adapter US, UK or Euro
    1x User Manual
  • Model Number
    1T-FC-766 HDMI to 3G SDI Converter
