Roland System Group S-MADI


Expand audio system possibilities with REAC and MADI.
Learn More
Our Price: $1,495.00
Write the first review.

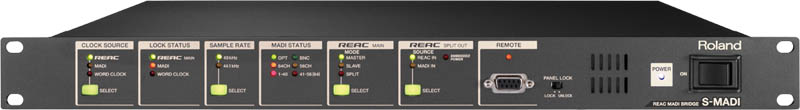

Roland System Group S-MADI
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Expand audio system possibilities with REAC and MADI.  Up to 40x40 channels of digital audio transfer between REAC and MADI devices

  • Bi-directional format conversion between REAC andMADI
  • BNC and Optical MADI ports
  • REAC SPLIT OUT for connecting to additional devices

Bridging REAC with MADI

S-MADI is bi-directional format converter between REAC and MADI.  Up to 40x40 channels of digital audio transmission is possible between MADI equipment and REAC products such as the Digital Snake series, V-Mixers, and M-48 Live Personal Mixers.  Both BNC and Optical I/O ports are included along with support for 56/64Ch mode.  Clock source can be selected from REAC, MADI or Word Clock.


The REAC SPLIT OUT port provides audio signal from REAC or MADI enabling a separate monitoring or recording audio signal from the main stream.  The SPLIT OUT supports REAC Embedded Power which supplies both the audio stream as well as power to a M-48 Live Personal Mixer or S-0808 Digital Snake.

Remote Control

A connected Digital Snake can be controlled using the S-4000R Remote Controller.  Using the S-4000RCS dedicated software also enables control of Digital Snake and M-48 Personal Mixing setup and monitoring parameters.

Digital Snake

This is an example of a live stage system using a Digital Snake with a MADI equipped digital console.  Phantom power and preamp gain can be controlled from the S-4000R Remote Controller connected to the S-MADI.

Personal Mixing

Connect several M-48 Live Personal Mixers to a MADI equipped digital console.  An additional M-48 can be connected to the SPLIT OUT port on the S-MADI that also supplies power - all over one Cat5e cable.

Monitor/Broadcast Position with Digital Snake

Here is an example of using a V-Mixer as a monitor or broadcast console along with a digital snake.  The V-Mixer connects to the SPLIT OUT on the S-MADI bridge enabling a 32 channel split from the S-4000S separate from the FOH mix.


  • Sampling Frequency: 48 kHz/44.1 kHz
  • MADI Channel Mode: 64 Ch/56 Ch
  • Connectors:
    Front Panel: REMOTE (D-sub 9-pin type, RS-232C)
    Rear Panel: REACMAIN (RJ-45 EtherCon type), REAC SPLIT OUT(REAC EMBEDDED POWER, RJ-45EtherCon type), WORD CLOCK IN (BNC type), WORD CLOCK OUT (BNC type), CoaxialMADI IN (BNC type), Coaxial MADI OUT (BNC type), Optical MADI IN/OUT (SCduplex type)
  • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V,AC 240 V (50/60 Hz)
  • Current Drew: 0.7 A (REAC Embedded Power: Maximum)
  • Dimensions: 19" W x 11-15/16" D x 1-3/4" H (482 x 303x 44mm)
  • Weight: 7 lbs. 12 oz. (3.5 kg)
