Vinten VB5-AP2F
Vision blue5 2 Stage Tripod Kit with Fluid Head, Floor Spreader, Soft Case


Vinten's VB5-AP2F is part of their Vision blue series which is designed to provide professional support for the experienced camera operator...
Learn More
Vinten VB5-AP2F 1
Vinten VB5-AP2F 2
Vinten VB5-AP2F 3
Vinten VB5-AP2F 4
Our Price: $2,897.50
List Price: $3,050.00
You save 5%!
Write the first review.
Vinten VB5-AP2F
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

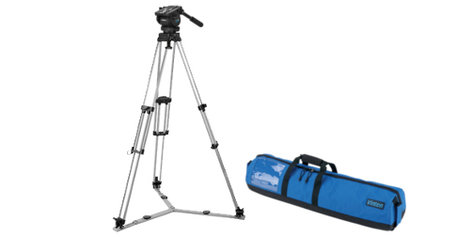

Vinten's VB5-AP2F is part of their Vision blue series which is designed to provide professional support for the experienced camera operator, matching the extremely high performance of today's lightweight camcorders and DSLRs equipped for video. This particular configuration consists of the Vision blue5 head, 2-Stage Aluminium Pozi-Loc Tripod, Ground Spreader, and Soft Case.

Vinten VB5-AP2F Kit Includes:

  • Vision blue5 head, model V4105-0001
  • 2-Stage Aluminium Pozi-Loc Tripod, model 3819-3
  • Ground Spreader, model 3363-3
  • Soft Case, model 3358-3

Vision blue5 Tripod Head, model V4105-0001
The award-winning Vision blue5 pan & tilt head is part of the "Vision blue" range of lightweight, compact, and refined pan and tilt heads engineered for todays professional ENG and corporate user who has come to expect uncompromising performance from the premium quality of a Vinten system. It features the heaviest load capacity of the Vision blue range, and offers genuine Broadcast quality performance, as well as its unique combination of continuous counterbalance and infinite drag. Providing a full ±90° of smooth tilt movement with a counterbalance range of 5.5 kg to 12 kg (@100mm CofG)—ideal for supporting the latest portable digital cameras. Along with the 'infinitely variable' LF drag system for silky smooth framing and on-demand whip pan movement, Vision's perfect balancing system gives total control, and also has the added advantage of an illuminated levelling bubble for quick, convenient set-up.

Fluid Head Features/Specifications:

  • Height: 4.8 " (12.1 cm)
  • Length: 5.1 " (12.9 cm)
  • Weight: 5.3 lbs (2.4 kg) including pan bar, camera plate, and bowl clamp
  • Capacity Range: 5.5 to 12kg
  • Tilt Range: ±90°
  • Ball Base: 75 mm
  • Pan Bar: Single fixed length
  • Camera Fixing: Standard Vision AS 2-way sliding plate with one 1/4" camera screw and pin
  • Levelling Bubble: Illuminated high contrast blue LED
  • Drag: Calibrated infinitely adjustable LF drag system
  • Counterbalance: Infinitely adjustable Perfect Balance
  • Color: Black

75MM Bowl, 2-Stage Pozi-Loc Tripod, model 3819-3
With unrivalled height range capability, this lightweight, compact tripod is quick and easy to set up and provides excellent operational flexibility. It comes with aluminium legs and Pozi-Loc leg clamps. The Pozi-Loc system provides positive indication that the tripod is securely locked.

3819-3 Tripod Features/Specifications:

  • 2-stage
  • Aluminium legs
  • 'Pozi-Loc' leg clamps
  • Maximum Load Capacity: 55 lbs (25 kg)
  • Weight: 7 lbs (3.2 kg)

Ground Spreader, model 3363-3
The Vinten model 3363-3 is a lightweight Ground Spreader that provides maximum stability to the tripod on flat ground, and includes the flexibility to cope with uneven terrain. Its hinged construction allows the spreader to fold with the tripod, and quick-release straps ensure that the spreader can easily be installed or removed if and when required.

Ground Spreader 3363-3 Features:

  • Flexible
  • Easily installed or removed

Rounded Soft Case, model 3358-3
The included Rounded Soft Case is designed to protect equipment during transport and provide a safe and easy way to carry the kit.

Vinten VB5-AP2F Kit Specifications:

  • Height range: 21.7-66.7" (55-169.5 cm)
  • Transport length: 32.9" (83.5 cm)
  • Weight: 17.3 lbs (7.9 kg)
  • Max capacity: 4.6 to 11 lbs (2.1 to 5 kg)
