Martin Professional MAC-VIPER-FLIGHTCASE

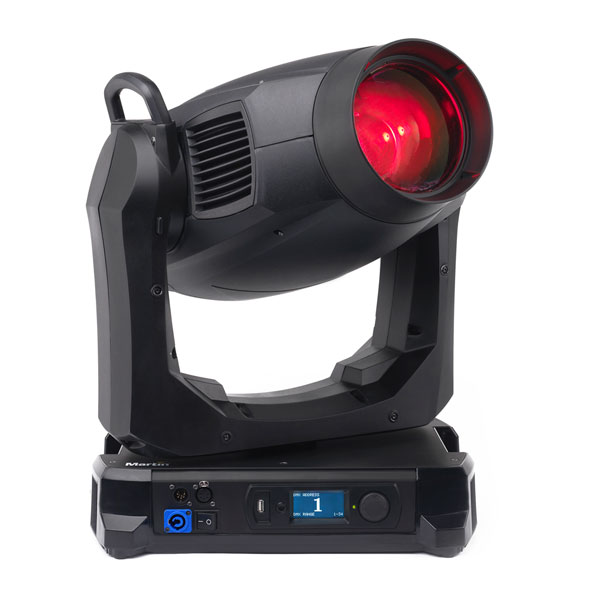

MAC Viper Profile™ Moving Head Spotlight in Double Flightcase


Call for price! Not available online.
List Price: $15,207.00

Related Products

The MAC Viper Profile is a new breed of high-output profile luminaire with an exceptional feature set and highly efficient optical system that outperforms market-leading profiles in the 1200-watt range. Its 1000-watt HID source is convincingly brighter than 1200-watt fixtures and the MAC Viper Profile also outperforms them in terms of speed and compactness. Power consumption is lower and output is approximately 55% more efficient.


  • 26000 lumens – Excellent light quality with a very flat and uniform field
  • 1:5 zoom – Fast zoom with auto-linked focus
  • Fat beam front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
  • 5 + 5 rotating gobos – All glass gobos with optimal focal separation for superior morphing effects
  • FX wheel – Patent-pending FX wheel provides an additional 4 fixed gobos and 135° animation effect
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 8-slot color wheel – Fixed colors for added color choice
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Strobe – Diverse strobe effects using mechanical or electronic control or in combination
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
  • 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling



  • Length (Head): 566 mm (22.3 in.)
  • Width: 472 mm (18.6 in.)
  • Width (Base): 335 mm (13.2 in.)
  • Height (head straight up): 731 mm (28.8 in.)
  • Height (maximum): 748 mm (29.4 in.)
  • Weight: 36 kg (79.4 lbs.)


  • Approved lamp: Osram HTI 1000/PS Lok-it
  • Type: 1000 W short-arc discharge
  • Color temperature: 6000 K
  • CRI (Color rendering index): >85
  • Average lifetime: 750 hours
  • Socket: PGJ28 Lok-it
  • Ballast: Electronic

Dynamic Effects

  • Color mixing: CMY, independently variable 0 - 100%
  • Color temperature control: CTO, variable 6000 - 3200 K
  • Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color
  • Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake
  • Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
  • FX wheel: Interchangeable static gobo and gobo animation effects
  • Prism: Interchangeable 4-facet rotating prism
  • Iris: 0 - 100%, pulse effects
  • Frost: Frost filter
  • Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
  • Dimming options: Choice of four dimming curves
  • Focus: Range varies with zoom angle, from 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity (approx.)
  • Zoom: 10° - 44°
  • Zoom-focus linking system: 3-zone
  • Pan: 540°
  • Tilt: 268°
  • Position correction system: Absolute position monitoring

Control and Programming

  • DMX channels: 26/34
  • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
  • 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Receiver: Opto-isolated RS-485
  • Firmware update: USB memory device or USB/DMX hardware interface over DMX link
