ikan Corporation D5W-P-DK
D5w LCD Monitor Deluxe Kit, 5.6" Panasonic D54 series

OUR PART #:  D5W-DK-P

The highly anticipated D5w with waveform, vectorscope and RGB parade is available. These keys features assist the video professional in getting the shot right the first time.
Learn More
Our Price: $1,149.00
List Price: $1,260.00
You save 9%!
Write the first review.
ikan Corporation D5W-P-DK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The highly anticipated D5w with waveform, vectorscope and RGB parade is available. These keys features assist the video professional in getting the shot right the first time. The D5w’s 1280 X 800 high definition panel is optimal for displaying it’s advanced software features. The D5w is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.

The D5w’s small lightweight design makes it perfect for handheld rigs and easy to store. The D5w’s HDMI input is complimented by a 3G-SDI input/output along with the feature of headphone audio out. The customized function buttons on the back of the D5w can be tailored for your workflow and optimization. Furthermore, the D5w’s frame has a rubberized texture for better grip and handling making it easier to maneuver.

This deluxe kit includes the Panasonic D54 series DV battery charger, adapter and battery.

Features:

  • 1280 x 800 HD panel
  • Waveform, Vector Scope, & RGB Parade
  • False color with adjustable under luminance and over luminance warning
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • DSLR Scaling

Video Inputs

  • 3G-SDI
  • HDMI

Specifications:

  • Diagonal (inch): 5.6-inch
  • Resolution: 1280 X 800
  • LCD Brightness: 300 NIT
  • Contrast Ratio: 400:1
  • Viewing angles: 160(H) 160 (V)
  • Operating Volts: DC6 to 24V
  • Dimension: 4.1"H x 6.5"W x 0.9"D
  • Weight (lbs): 0.6
  • Shipping Weight: 5 lbs
  • Inputs: 3G-SDI, HDMI
  • Video Outputs: 3G-SDI
  • Audio Output: Headphone

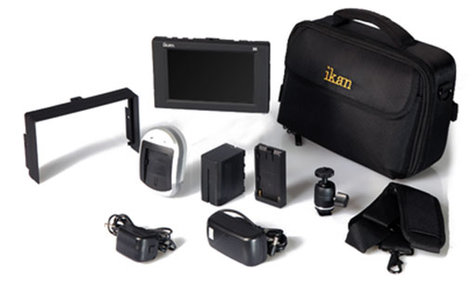

What's in the Box:

  • 5.6" 3G-SDI LCD Monitor w/ Hi-Def Panel (Waveform) (D5w)
  • DV Battery (Panasonic D54 series)
  • DV Battery Charger (Panasonic D54 series)
  • DV Battery Plate (Panasonic D54 series)
  • Soft Case (IBG-SC)
  • Monitor Visor
  • SM201 (SM201)
