ikan Corporation D5w-DK-S
D5w 5.6" LCD Monitor Deluxe Kit forSony L Series Batteries


The ikan D5w with waveform, vectorscope and RGB parade assists video professionals in getting the shot right the first time.
Learn More
Our Price: $1,149.00
List Price: $1,260.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


ikan Corporation D5w-DK-S
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ikan D5w with waveform, vectorscope and RGB parade assists video professionals in getting the shot right the first time. The D5w's 1280 X 800 high definition panel is optimal for displaying it's advanced software features. The D5w is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.

The D5w’s small lightweight design makes it perfect for handheld rigs and easy to store. The D5w's HDMI input is complimented by a 3G-SDI input/output along with the feature of headphone audio out. The customized function buttons on the back of the D5w can be tailored for your workflow and optimization. Furthermore, the D5w’s frame has a rubberized texture for better grip and handling making it easier to maneuver.

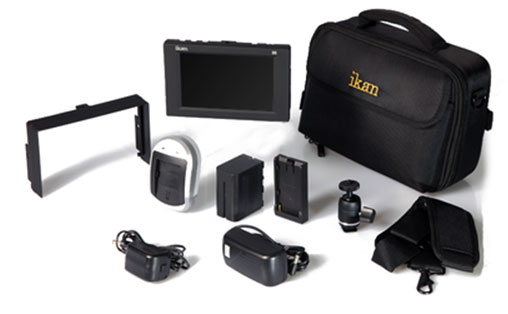

This deluxe kit includes the Sony L series DV battery charger, adapter and battery.


  • 5.6" 3G-SDI LCD Monitor with Hi-Def Panel (Waveform) (D5w)
  • DV Battery (Sony L series)
  • DV Battery Charger (Sony L series)
  • DV Battery Plate (Sony L series)
  • Soft Case (IBG-SC)
  • Monitor Visor
  • SM201 (SM201)


  • 1280 x 800 HD panel
  • Waveform, Vector Scope, & RGB Parade
  • False color with adjustable under luminance and over luminance warning
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • DSLR Scaling

Video Inputs

  • 3G-SDI
  • HDMI


  • Diagonal (inch): 5.6-inch
  • Resolution: 1280 X 800
  • LCD Brightness: 300 NIT
  • Contrast Ratio: 400:1
  • Viewing angles: 160(H) 160 (V)
  • Operating Volts: DC6 to 24V
  • Dimension: 4.1"H x 6.5"W x 0.9"D
  • Weight (lbs): 0.6
  • Shipping Weight: 5 lbs
  • Inputs: 3G-SDI, HDMI
  • Video Outputs: 3G-SDI
  • Audio Output: Headphone
