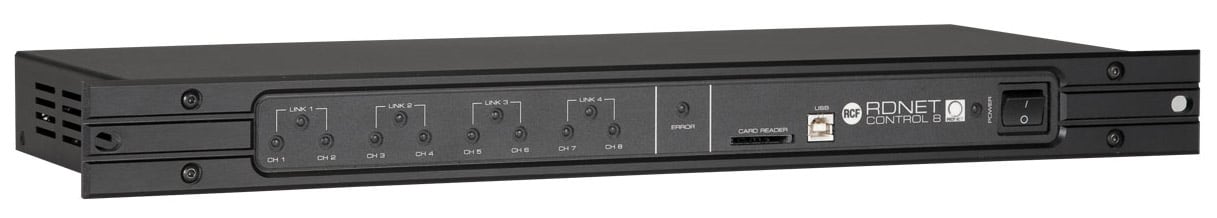

RCF RDNet Control 8
8 Output Master Network Hub

OUR PART #  RD-NET-CONTROL-8

Our Price: $2,535.00
List Price: $3,575.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF's RDNet Control 8 is a real-time monitor and control system able to manage up to 256 devices linked in a bus or up to 128 devices in a ring topology.

All the data collected from the slaves are delivered to the sound engineer by USB in a local installation or by Ethernet from remote locations.

The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol making it possible to address in single cabinets or groups, specific presets or modification parameters in real-time.  The key point of RDNet Control 8, in fact, is to ensure minimum refresh time (at least 5 per second) of all the system data performance, for example: RMS signals, compressor activity, temperature, fans speed, warnings, etc.

Data transfer can be routed also through the provided XLR connectors enabling the control of the system on traditional multi-cored cables.

Features:

  • Bridging the control and monitoring network in between Ethernet (remote control) / USB (direct control) and RDNet
  • Connecting PC to Control 8 and controlling up to 8 subnet of up to 32 slaves devices
  • Configuring the net with bus connection or ring connection
  • Auto detect net configuration and registration
  • Controlling slave devices status and functions
  • Monitoring and displaying faults and warnings sent from slave devices
  • Storing subnet user filters configuration in a removable memory card

Network:

  • EIA RS-485 standard connection
  • Daisy-chain ring architecture or bus connection
  • Up to 8 subnet managed
  • Up to 32 slave devices for subnet

RDNet Connection:

  • 8 Ethercon housed RJ45 with Ethernet Cat5 cable
  • 8 XLR chassis connectors with XLR data cable (alternative to RJ45)

PC Connection:

  • USB standard connection or Ethernet connection
  • Front panel USB type B female connector for direct control
  • Rear panel standard RJ45 connector for remote control

Data Storage: 4 GB SD card reader

Power Characteristics:

  • 100 to 240 VAC, 50 to 60 Hz (auto selection)
  • Less than 15 W of power consumption
  • Powercon connector

Mechanical Characteristics:

  • Dimensions: 19.28" W x 1.76" H x 7.28" D (482 x 44 x 182 mm)
  • Weight: 4.42 lbs (2 kg)
  • Materials: plated and painted steel chassis

RCF RDNet Control 8
8 Output Master Network Hub

OUR PART #  RD-NET-CONTROL-8

Product Information:

RCF's RDNet Control 8 is a real-time monitor and control system able to manage up to 256 devices linked in a bus or up to 128 devices in a ring topology.

All the data collected from the slaves are delivered to the sound engineer by USB in a local installation or by Ethernet from remote locations.

The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol making it possible to address in single cabinets or groups, specific presets or modification parameters in real-time.  The key point of RDNet Control 8, in fact, is to ensure minimum refresh time (at least 5 per second) of all the system data performance, for example: RMS signals, compressor activity, temperature, fans speed, warnings, etc.

Data transfer can be routed also through the provided XLR connectors enabling the control of the system on traditional multi-cored cables.

Features:

  • Bridging the control and monitoring network in between Ethernet (remote control) / USB (direct control) and RDNet
  • Connecting PC to Control 8 and controlling up to 8 subnet of up to 32 slaves devices
  • Configuring the net with bus connection or ring connection
  • Auto detect net configuration and registration
  • Controlling slave devices status and functions
  • Monitoring and displaying faults and warnings sent from slave devices
  • Storing subnet user filters configuration in a removable memory card

Network:

  • EIA RS-485 standard connection
  • Daisy-chain ring architecture or bus connection
  • Up to 8 subnet managed
  • Up to 32 slave devices for subnet

RDNet Connection:

  • 8 Ethercon housed RJ45 with Ethernet Cat5 cable
  • 8 XLR chassis connectors with XLR data cable (alternative to RJ45)

PC Connection:

  • USB standard connection or Ethernet connection
  • Front panel USB type B female connector for direct control
  • Rear panel standard RJ45 connector for remote control

Data Storage: 4 GB SD card reader

Power Characteristics:

  • 100 to 240 VAC, 50 to 60 Hz (auto selection)
  • Less than 15 W of power consumption
  • Powercon connector

Mechanical Characteristics:

  • Dimensions: 19.28" W x 1.76" H x 7.28" D (482 x 44 x 182 mm)
  • Weight: 4.42 lbs (2 kg)
  • Materials: plated and painted steel chassis
