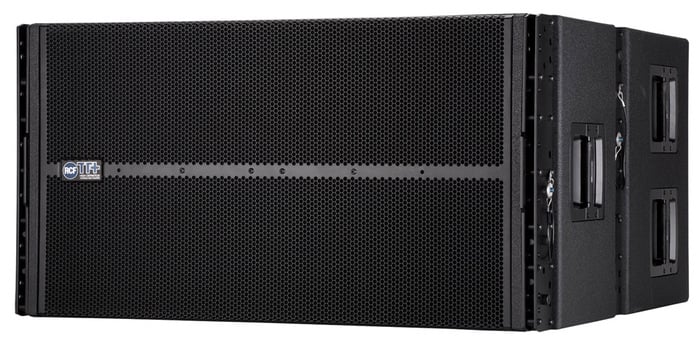

RCF TTL36-AS
2 x 18" 4000W High-Output Active Line Array Subwoofer

OUR PART #  TTL36-AS

Call for price! Not available online.
List Price: $12,299.00


RCF's TTL36-AS is the ideal flyable bass complement for the TTL55-A array system.

The clam-shell design guarantees the maximum output per size while the 2x 4.5" voice coil vented 18" woofer design offers the minimum of power compression.  The TTL36-AS is perfect to create flown systems for theatrical and indoor requirements.  For very large outdoor systems is the perfect complement to reinforce the TTL55-A bass performance in combination with the TTS56-A subwoofers.

Features:

  • 4000 Watt (2x 2000 W digital switching amplifiers)
  • 2 x 18" high power neodymium woofer, 4.5" voice coil
  • 96 Khz, 32 bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for stacking groups of 3
  • Tour grade Baltic birch cabinet, integrated rigging.
  • Maximum output per size

Specifications:

  • Acoustical
    • Frequency Response -3 dB: 35 Hz ÷ 120 kHz
    • Max SPL: 142 dB
    • Woofer: 2x 18" neo, 4.5" voice coil
  • Input/Output Section
    • Input signal: Balanced/unbalanced
    • Input connectors: XLR, RDNet Ethercon
    • Output connectors: XLR, RDNet Ethercon
    • Input sensitivity: -2 dBu / + 10 dBu
  • Processor Section
    • Crossover frequencies: 80 Hz / 100 Hz
    • Protections: Thermal, Excursion, RMS
    • Limiter: Soft limiter
    • Controls: DSP controlled
  • Amplifier
    • Total power: 2x 200)W
    • Low frequencies: 2x 2000 Watts
    • Cooling: Convection/forced
    • Connections: Powercon
  • Cabinet
    • Cabinet Material: Baltic birch
    • Hardware: Array fly-ware
    • Handles: 6 on side
    • Color: Black
  • Physical
    • Dimensions: 21.1" H x 40.23" W x 38.18" D (536 x 1022 x 970 mm)
    • Net Weight: 264.55 lbs (120 kg)

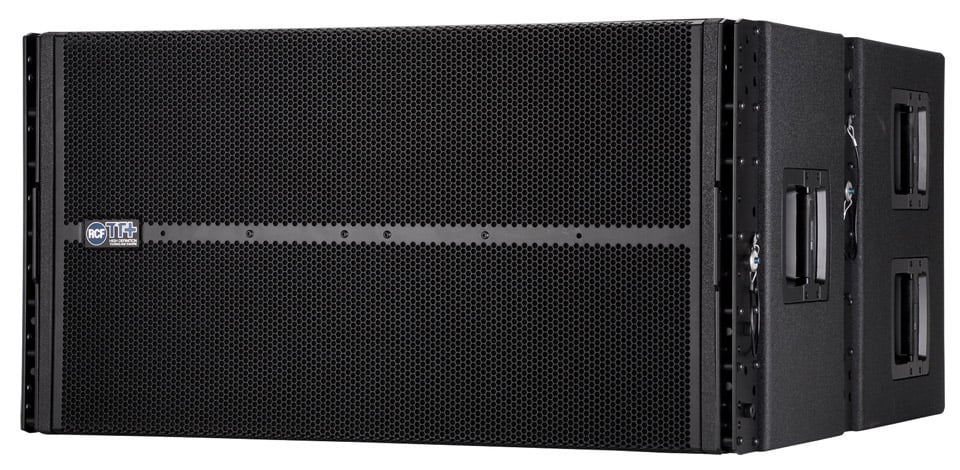

RCF TTL36-AS
2 x 18" 4000W High-Output Active Line Array Subwoofer

OUR PART #  TTL36-AS

Product Videos:

Product Information:

RCF's TTL36-AS is the ideal flyable bass complement for the TTL55-A array system.

The clam-shell design guarantees the maximum output per size while the 2x 4.5" voice coil vented 18" woofer design offers the minimum of power compression.  The TTL36-AS is perfect to create flown systems for theatrical and indoor requirements.  For very large outdoor systems is the perfect complement to reinforce the TTL55-A bass performance in combination with the TTS56-A subwoofers.

Features:

  • 4000 Watt (2x 2000 W digital switching amplifiers)
  • 2 x 18" high power neodymium woofer, 4.5" voice coil
  • 96 Khz, 32 bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for stacking groups of 3
  • Tour grade Baltic birch cabinet, integrated rigging.
  • Maximum output per size

Specifications:

  • Acoustical
    • Frequency Response -3 dB: 35 Hz ÷ 120 kHz
    • Max SPL: 142 dB
    • Woofer: 2x 18" neo, 4.5" voice coil
  • Input/Output Section
    • Input signal: Balanced/unbalanced
    • Input connectors: XLR, RDNet Ethercon
    • Output connectors: XLR, RDNet Ethercon
    • Input sensitivity: -2 dBu / + 10 dBu
  • Processor Section
    • Crossover frequencies: 80 Hz / 100 Hz
    • Protections: Thermal, Excursion, RMS
    • Limiter: Soft limiter
    • Controls: DSP controlled
  • Amplifier
    • Total power: 2x 200)W
    • Low frequencies: 2x 2000 Watts
    • Cooling: Convection/forced
    • Connections: Powercon
  • Cabinet
    • Cabinet Material: Baltic birch
    • Hardware: Array fly-ware
    • Handles: 6 on side
    • Color: Black
  • Physical
    • Dimensions: 21.1" H x 40.23" W x 38.18" D (536 x 1022 x 970 mm)
    • Net Weight: 264.55 lbs (120 kg)
