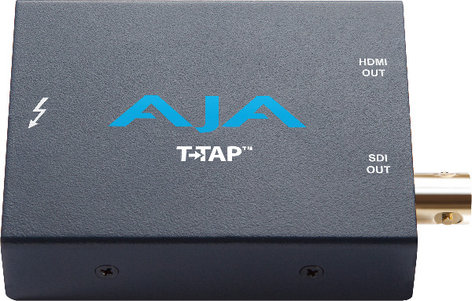

AJA Video Systems Inc T-TAP
Thunderbolt HDMI/SDI Transcoder

OUR PART #:  T-TAP

AJA’s T-TAP™ provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt™ to deliver high-quality 10-bit SD...
Learn More
Our Price: $295.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc T-TAP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA’s T-TAP™ provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt™ to deliver high-quality 10-bit SD, HD and 2K video and embedded audio output from any compatible Mac.

Small and simple to use, T-TAP connects to your Mac via the blazing-fast Thunderbolt™ connection which provides the bandwidth necessary for full broadcast-quality video and audio output. Based on the same architecture as AJA’s KONA cards, T-TAP offers full 10-bit broadcast-quality output, superior to DisplayPort adapters that only support 8-bit and are not true video output solutions for professional applications.

HD/SD SDI and HDMI outputs are available, with support for 3D HDMI output. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer gear. 3D support enables T-TAP to output directly to 3D HDMI monitors for real time stereoscopic review, with no need for additional hardware.

Even with its small size, T-TAP doesn’t compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1 - or even 7.1 mixes. T-TAP is powered via the Thunderbolt™ connection with no need for an additional power supply, minimizing cabling and maximizing portability. Built to the exacting standards of all AJA hardware, T-TAP hardware is backed by our world-class support network and 3-year international warranty.

AJA T-TAP Features:

  • 10-bit, SD, HD and 2K output - AJA's T-TAP™ provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt™ to deliver high-quality 10-bit SD, HD and2K video and embedded audio output from any compatible Mac. Smaller than a deck of playing cards, T-TAP offers broadcast-quality performance you can fit in the palm of your hand.
  • Thunderbolt connectivity - Simple to setup and use, T-TAP connects to your Mac via the blazing-fast Thunderbolt™ connection which provides the bandwidth necessary for full broadcast-quality video and audio output. Because T-TAP is powered via the Thunderbolt™ connection, there's no need for an additional power supply, minimizing cabling and maximizing portability.
  • The power of Io XT - Based on the same architecture as AJA's Io XT Thunderbolt™ I/O, T-TAP offers full 10-bit broadcast-quality output. 10-bit quality is far superior to DisplayPort adapters that only support 8-bit and are not true video output solutions for professional applications.
  • Professional outputs - T-TAP features HD/SD SDI and HDMI outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer gear.
  • 3D support - Need a compact solution for 3D monitoring? No problem. T-TAP can output directly from the HDMI output to 3DHDMI monitors for stereoscopic review, without the need for any additional hardware.
  • Embedded audio - It may be compact, but T-TAP doesn't compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1 - or even 7.1 mixes.

AJA T-TAP Specifications:

  • Input: 1x Thunderbolt™ input
  • Video Output:
    • 1x SDI output
    • 1x HDMI v1.3 output (Compressed 3D support)
  • Supported Video Formats: 8-bit 4:2:2 and 10-bit 4:2:2 in the following formats:
    • 525i 29.97
    • 625i 25
    • 720P 50,59.94,60
    • 1080i 25, 29.97, 30
    • 1080PsF 23.98, 24, 25,29.97
    • 1080p 23.98, 24, 25, 29.97
    • 2K 1080p 23.98, 24, 25
    • 2K 1080PsF 24, 25
  • Audio Support:
    • 24-bit SDI embedded audio, 8-channel, 48kHz
    • 24-bit HDMI embedded audio, 8-channel, 48kHz
  • Physical:
    • Height: 2.28" (5.8cm)
    • Width: 2.95" (7.5cm)
    • Depth: 1.18"(3cm)
