Atlas Sound I8SM
8" IPS Wall/Ceiling Speaker, with Microphone

OUR PART #:  I8SM

Our Price: $616.50
List Price: $769.95
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound I8SM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

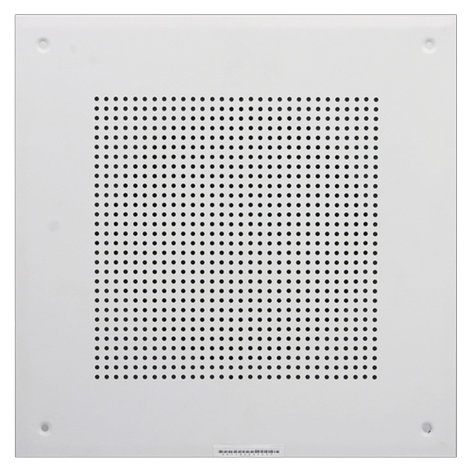

Model I8SM from Atlas Sound consists of a factory assembled loudspeaker/ baffle/ microphone with PCB amp/control board securely mounted to the rear of the baffle via concealed weld studs.

The amp/control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3AF compliant POE switches. (local 12-18VDC PSUs may also be used instead of POE switches). Interconnection is via a board mounted female RJ-45 connector.

The industry standard C10A loudspeaker used in the I8SM is a dual cone 8" (205mm) loudspeaker with a 10oz (260g) ceramic magnet. It includes a curvelinear paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" (25mm) diameter copper voice coil with aluminum former for better heat dissipation.

A omni directional subminiature (1/4" / 6mm), electret condenser microphone is mounted behind the steel perf material adjacent the loudspeaker to allow 2-way communication and/or monitoring from the loudspeaker location to any PC or IP phone in the system.

The 18 gauge construction of the metal baffle provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

Features:

  • Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
  • Loudspeakers are also compatible with SIP (session initiation protocol) VoIP systems. Contact Atlas Sound for SIP configuration info.
  • Highly efficient 10oz dual cone loudspeaker system provides 94dB average SPL @ 1W/1M and is capable of 103dB @ 1 meter via the rated power of the internal IP addressable amplifier
  • Wide frequency response of 86Hz to 8kHz (-3dB) is perfect for speech and general messaging playback
  • 105° dispersion in the 2 kHz octave band (-6 dB)
  • Built-in microphone for 1/2 duplex communication
  • ETL Listed
  • Note: NOT COMPATIBLE WITH CONTROLKOM 2.0 USE MODEL IDT12M-CK FOR USE WITH CONTROLKOM 2.0.

Specifications:

  • Height: 11 1/2" (29.21 cm)
  • Width: 11 1/2" (29.21 cm)
  • Depth: 4 1/4" (10.7 cm)
  • Shipping Weight: 5.50 lbs (2.49 kgs)
  • Connector Type: RJ-45
  • UL Listed: 60950-1
