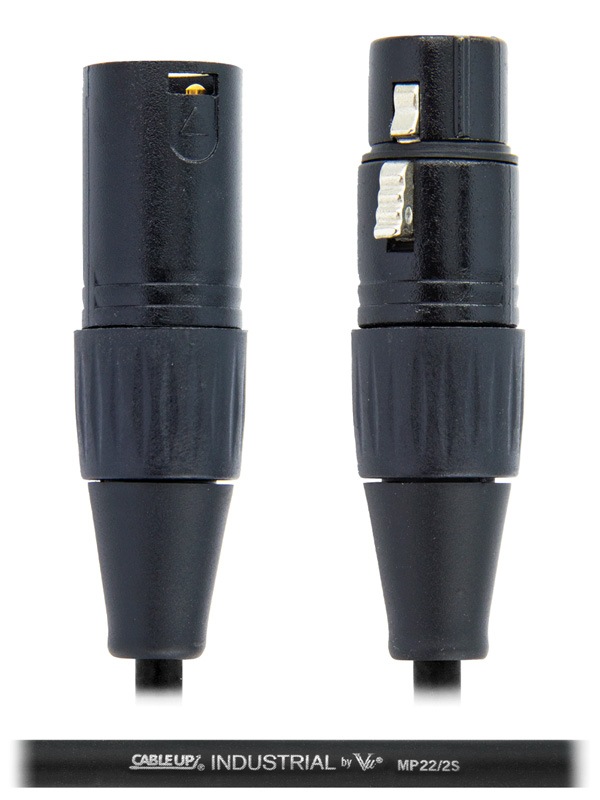

Cable Up by Vu MIC-XX-3
3 ft XLR Microphone Cable

OUR PART #:  MIC-XX-3

Cable Up's rugged Industrial line features high-performance, balanced analog microphone cable.
Learn More
Our Price: $6.99
List Price: $10.95
You save 36%!
Write the first review.

Related Products

Cable Up's rugged Industrial line features high-performance, balanced analog microphone cable. The soldered XLR connectors are fitted with gold-plated contacts for reliable professional use at a competitive price.

All Cable Up® Industrial cables are covered by a 1-year unconditional warranty and a limited lifetime warranty against defects in material or workmanship.

Cable Up MIC-XX-3 Specifications:

  • Cable:
    • No. of Conductors:  2
    • Conductor Gauge:  22 AWG
    • Stranding:  26x36
    • Shield Type & % Coverage:  B.C. Braid, 78%
    • Overall Diameter:  0.245"
    • Nominal Capacitance, Conductor to Conductor:  19 pf / ft
    • Nominal Capacitance, One conductor to shield with other conductor tied to shield:  35 pf / ft
    • Jacket Thickness:  0.045"
    • Insulation Thickness:  0.018"
    • Weight per 100 ft:  3.2 lbs
  • Connectors:
    • Part #, Male: X-002
    • Part #, Female: X-001
    • Soldered connectors with gold-plated contacts
    • Melt lacquer shell
