OWI Incorporated AMPSTCOMB
Single Cable Stereo Combiner

OUR PART #  AMPSTCOMB

Our Price: $33.30
List Price: $37.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

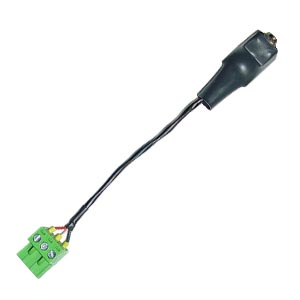

The OWI AMPSTCOMB is a single-cable solution for combining two-channel stereo audio into a mono audio signal.

When space is cramped and time is short, the OWI AMPSTCOMB is your single-cable solution for combining 2-channel stereo audio into a mono audio signal for use in mono PA systems.  Comes with a 5-year warranty.

Features:

  • Audio frequency response: 20 Hz to 20 kHz, +/- 0.001 dB
  • THD + Noise: 0.001% @ 20 Hz to 20 kHz at nominal level
  • S/N: 130 dB at maximum output
  • Audio input: 1 3.5mm female stereo unbalanced mini plug
  • Connector: 1 3.5mm female stereo mini plug (tip-ring-sleeve)
  • Impedance: 1k ohms unbalanced
  • Maximum level: +24 dBu (12.3V)
  • Nominal level: -10 dBV (316 mVrms)
  • Audio output: 1 mono, unbalanced - 1k ohms
  • Connectors: 1 3.5mm direct insertion captive screw connector, 3 pole
  • Temperature/humidity:
     -Storage: -40°F to 158°F/10% to 90% non-condensing
    - Operating: 32°F to 122°F/10% to 90% non-condensing
  • Weight: 0.03 ounces
  • Dimensions: 5/8" wide by 6" long (wire included)
  • Enclosure: G4 rated PCB with 3.5 female mini attached
  • MTBF: 50,000 hours

OWI Incorporated AMPSTCOMB
Single Cable Stereo Combiner

OUR PART #  AMPSTCOMB

Product Information:

The OWI AMPSTCOMB is a single-cable solution for combining two-channel stereo audio into a mono audio signal.

When space is cramped and time is short, the OWI AMPSTCOMB is your single-cable solution for combining 2-channel stereo audio into a mono audio signal for use in mono PA systems.  Comes with a 5-year warranty.

Features:

  • Audio frequency response: 20 Hz to 20 kHz, +/- 0.001 dB
  • THD + Noise: 0.001% @ 20 Hz to 20 kHz at nominal level
  • S/N: 130 dB at maximum output
  • Audio input: 1 3.5mm female stereo unbalanced mini plug
  • Connector: 1 3.5mm female stereo mini plug (tip-ring-sleeve)
  • Impedance: 1k ohms unbalanced
  • Maximum level: +24 dBu (12.3V)
  • Nominal level: -10 dBV (316 mVrms)
  • Audio output: 1 mono, unbalanced - 1k ohms
  • Connectors: 1 3.5mm direct insertion captive screw connector, 3 pole
  • Temperature/humidity:
     -Storage: -40°F to 158°F/10% to 90% non-condensing
    - Operating: 32°F to 122°F/10% to 90% non-condensing
  • Weight: 0.03 ounces
  • Dimensions: 5/8" wide by 6" long (wire included)
  • Enclosure: G4 rated PCB with 3.5 female mini attached
  • MTBF: 50,000 hours
