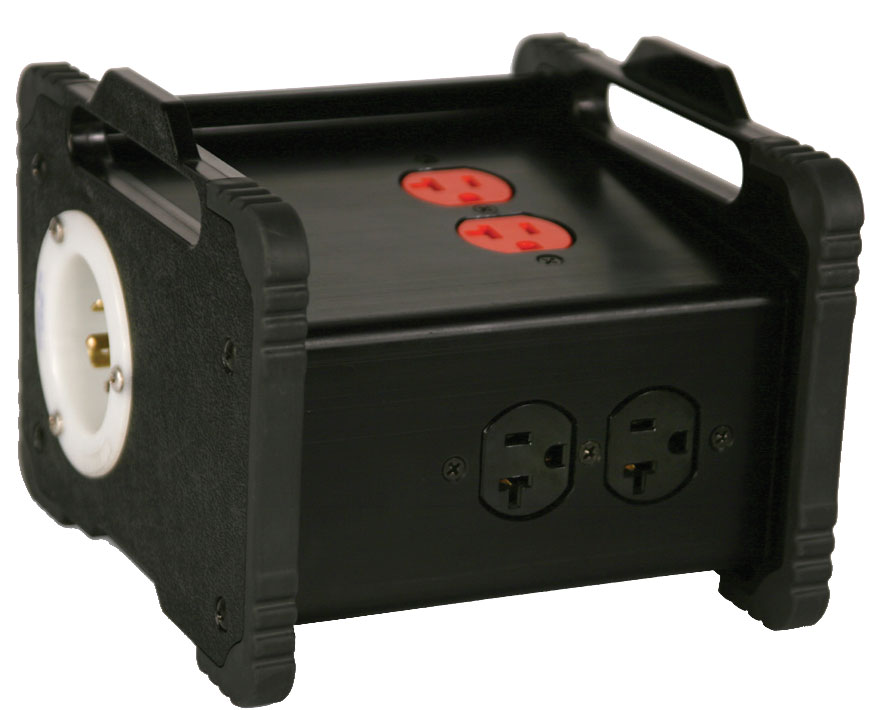

Lex Products Corp BNZA2-Z2-6
20 Amp "Doghouse" to (3) NEMA 5-20, 20 Amp Color-Coded Duplex Receptacles, Feed Thru

OUR PART #:  BNZA2-Z2-6

The new doghouse is ideal for tradeshow and exhibitions where a large number of convenience receptacles are needed over a wide area.
Learn More
Our Price: $272.11
List Price: $332.25
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp BNZA2-Z2-6
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The new doghouse is ideal for tradeshow and exhibitions where a large number of convenience receptacles are needed over a wide area. The feed thru feature allows multiple boxes to be placed along one feed so that receptacles can be easily accessed wherever needed. Doghouses are also popular in live event and audio applications where multiple amplifiers, speakers and other audio components require power while positioned on a stage or other venue.

Features:

  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock, impact and corrosion
  • End plate grips for easy handling in tight spaces
  • Duplex receptacles are color coded for phase identification

Specifications:

  • Rating: 20 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire,120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC inlet
  • Output: (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC color-coded duplex receptacles
  • Feed Thru: (1) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking receptacle
  • Overcurrent Protection: None
  • Dimensions (LxWxH): 6" x 7.6" x 5.6" (15.24 x 19.30 x 14.22 cm)
  • Weight: 4 lbs (1.8 kg)
