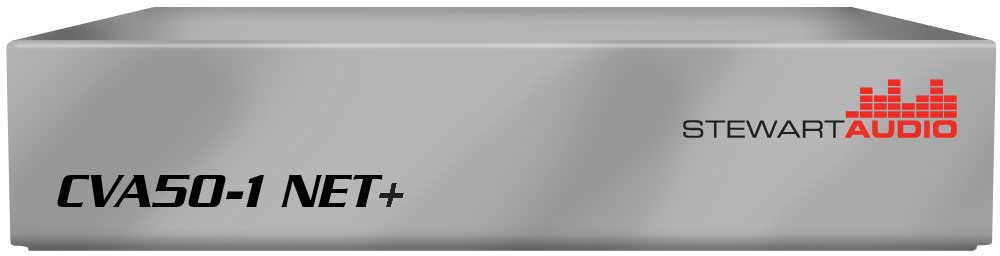

Stewart Audio CVA50-1-NET+
Mono Dante Subcompact Amplifier, 50W x 1 @ 70V/100V

OUR PART #  CVA50-1-NET+

Our Price: $569.00
List Price: $669.00
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Stewart Audio's CVA50-1 NET and NET+ are subcompact 50W mono 70V/100V networkable power amplifiers built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. The CVA50-1 NET version is designed with a network only signal input, while the Net+ version has both Network and local legacy inputs.

Stewart Audio CVA50-1-NET+ Specifications:

  • CVA50-1 100V/70V: 50W
  • Frequency Response (+0, -3 dB): 100 Hz - 20 kHz
  • Power Bandwidth (+3, -3 dB): 80 Hz - 30 kHz
  • THD+N: <.1%
  • Signal-to-Noise Ratio: >80dB
  • Remote Volume Control: 0-10V DC, 4 Pin Euro Block
  • Input Sensitivity: .5V (-3 dBV)
  • Standard Voltage Gain: 151X (43dB) @ 70.7 Volts out
  • Input impedance (Balanced/Unbalanced): 20k Ohms/10k Ohms
  • Sleep, Idle Current Draw , 1/8 power draw: 3.3 / 6.9 / 14.2 Watts
  • Class: D
  • Input Connectors: RJ45, Euro Block 3 Pin, 3.5mm (NET+)
  • Output Connectors: Euro Block 2 Pin, 5mm
  • Power Supply: External in-line 48VDC (Included), 2 pin Euro Block
  • Cooling: Convection-Cooling (No Fans)
  • Controls: Level (NET+)
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis & Top Cover
  • Dimensions (HxWxD): 1.25" x 6.00" x 4.00" (3.2 x15.2 x 10.2 cm)
  • Weight: <1.2 lbs (0.54 kg)
  • Warranty: 3 years
  • Plenum Rating: UL 2043 Approved

Stewart Audio CVA50-1-NET+
Mono Dante Subcompact Amplifier, 50W x 1 @ 70V/100V

OUR PART #  CVA50-1-NET+

Product Information:

Stewart Audio's CVA50-1 NET and NET+ are subcompact 50W mono 70V/100V networkable power amplifiers built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. The CVA50-1 NET version is designed with a network only signal input, while the Net+ version has both Network and local legacy inputs.

Stewart Audio CVA50-1-NET+ Specifications:

  • CVA50-1 100V/70V: 50W
  • Frequency Response (+0, -3 dB): 100 Hz - 20 kHz
  • Power Bandwidth (+3, -3 dB): 80 Hz - 30 kHz
  • THD+N: <.1%
  • Signal-to-Noise Ratio: >80dB
  • Remote Volume Control: 0-10V DC, 4 Pin Euro Block
  • Input Sensitivity: .5V (-3 dBV)
  • Standard Voltage Gain: 151X (43dB) @ 70.7 Volts out
  • Input impedance (Balanced/Unbalanced): 20k Ohms/10k Ohms
  • Sleep, Idle Current Draw , 1/8 power draw: 3.3 / 6.9 / 14.2 Watts
  • Class: D
  • Input Connectors: RJ45, Euro Block 3 Pin, 3.5mm (NET+)
  • Output Connectors: Euro Block 2 Pin, 5mm
  • Power Supply: External in-line 48VDC (Included), 2 pin Euro Block
  • Cooling: Convection-Cooling (No Fans)
  • Controls: Level (NET+)
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis & Top Cover
  • Dimensions (HxWxD): 1.25" x 6.00" x 4.00" (3.2 x15.2 x 10.2 cm)
  • Weight: <1.2 lbs (0.54 kg)
  • Warranty: 3 years
  • Plenum Rating: UL 2043 Approved
