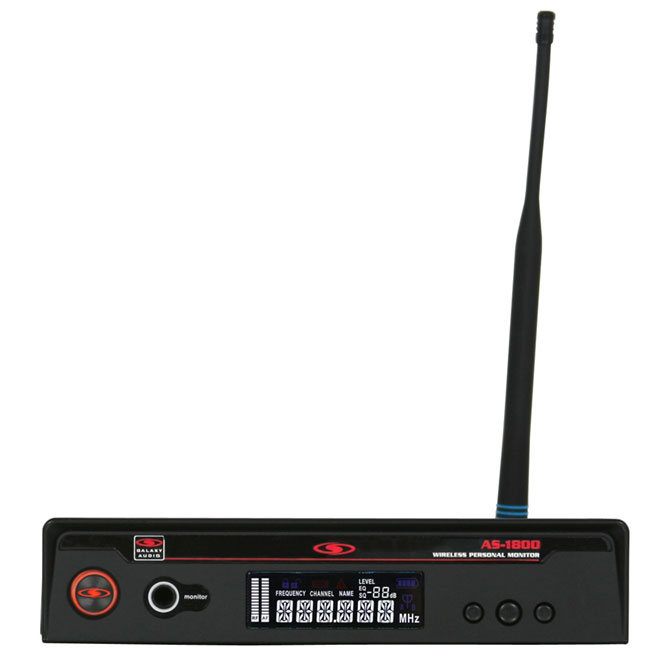

Galaxy Audio AS-1800T UHF Wireless In-Ear Monitor System Transmitter

OUR PART #: AS-1800T

Copied to clipboard

The AS-1800T is the transmitter unit of Galaxy Audio's AS-1800 wireless personal monitor system. ...Read more

Galaxy Audio AS-1800T UHF Wireless In-Ear Monitor System Transmitter Image 1
Galaxy Audio AS-1800T UHF Wireless In-Ear Monitor System Transmitter Image 2
Galaxy Audio AS-1800T UHF Wireless In-Ear Monitor System Transmitter Image 3
Galaxy Audio AS-1800T UHF Wireless In-Ear Monitor System Transmitter
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AS-1800T is the transmitter unit of Galaxy Audio's AS-1800 wireless personal monitor system.

Galaxy Audio AS-1800T Features:

  • Easy to Read LCD
  • 2-¼" Line Outputs (unbalanced)
  • Volume Control
  • Two XLR/¼" Combo Inputs
  • Naming Function
  • 30/100 mW Selectable Transmitter Output
  • Monitor Output
  • Detachable BNC Antenna

Galaxy Audio AS-1800T Specifications:

  • Main Frame Size: EIA STANDARD ½ U
  • Channels: 32 Channels / 640 Selectable Frequencies
  • Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
  • Available Frequencies : B2 538~554 MHZ, B3 554~570 MHZ
  • Modulation Mode: FM stereo modulation
  • Output Power: 30mW or 100mW
  • Operating Range: 300' (100M) typical (in open space)
  • Oscillation: PLL synthesized
  • Spurious Rejection
  • Maximum Deviation Range: ±68KHz
  • Band Width: 16MHz
  • S/N: >105dB
  • T.H.D.: < 0.7% @ 1KHz
  • Frequency response: 45Hz~18KHz±1dB
  • Audio Input: Line level X 2, XLR and ¼" Combo jack
  • Audio Output: 6.3mmf unbalanced jack X 2
  • Dimensions: 1.7" x 8.2" x 8.1" (44mm (H) x 209mm (W) X 206mm (D)
  • Weight: 2.3 lbs 1.04kg
