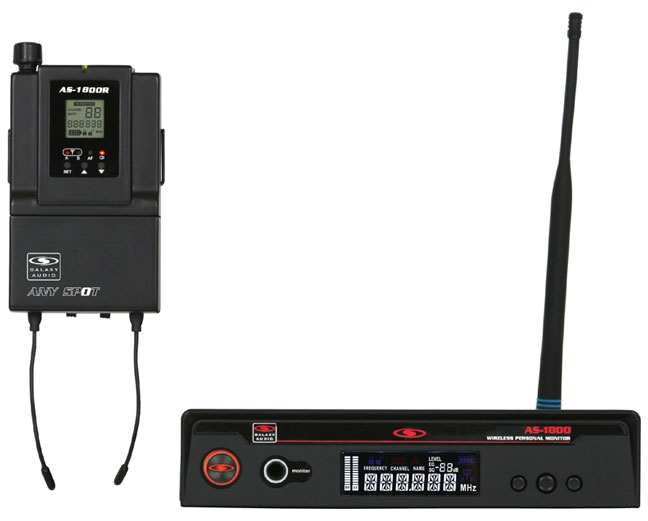

Galaxy Audio AS-1800 UHF Wireless In-Ear Monitor System with EB4 Ear Buds

The AS-1800 (Any Spot Wireless Personal Monitor) from Galaxy Audio is designed with features for the professional. The body pack receiver is set up with 150mW's of output to the ear buds. The system is completed with the AS-1800T which has 2-1/4 inch line ouputs and a detachable BNC antenna.

This unit also contains a Mixed Mono feature that allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter right on the body pack. With Mixed Mono, the performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix; or, you can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.

Galaxy Audio AS-1800 Features:

• Single Rack Mount Included
• Naming Function
• 30/100 mW Selectable Transmitter Output
• Monitor Output
• 300' Range
• UHF Frequency
• 640 Selectable Frequencies/ 32 Selectable Channels
• Ear Buds

Galaxy Audio AS-1800 Specifications:

• Frequency Range and Transmitter Output Level
• Band: UHF
• Frequency Range: B2 538~554 MHZ, B3 554~570 MHZ
• Transmitter Output Power: 30mW or 100mW
• Operating Range: Under Typical Conditions 300' (92m)
• Note: Actual range depends on RF signal absorption, reflection, and interference
  • Frequency Stability: ±0.0005%, Phase Lock Loopfrequency control
  • Total Harmonic Distortion: < 0.7% @ 1KHz
  • Signal to Noise: >105dB
  • Maximum Deviation Range: ±68KHz
  • Operating Temperature: Range 14ºF to 122ºF (-10 Cº to +50 Cº)
• Note: Battery characteristics may limit this range
