Radial Engineering PowerStrip 3 Slot Power-Rack, 19" 1RU, 500 Ma Power Supply

OUR PART #: POWERSTRIP

Copied to clipboard

Radial Engineering's PowerStrip is a three-module rackmount power supply designed for use with their 500 series modular audio devices. ...Read more

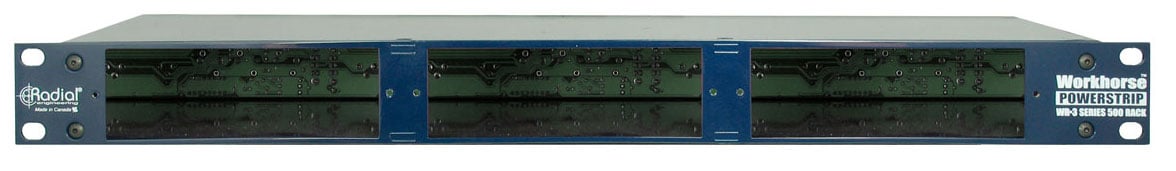

Radial Engineering PowerStrip 3 Slot Power-Rack, 19" 1RU, 500 Ma Power Supply Image 1

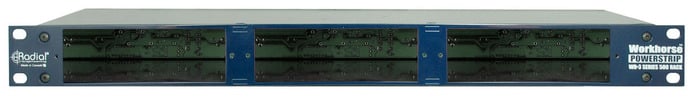

Radial Engineering PowerStrip 3 Slot Power-Rack, 19" 1RU, 500 Ma Power Supply Image 2
Radial Engineering PowerStrip 3 Slot Power-Rack, 19" 1RU, 500 Ma Power Supply
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radial Engineering's PowerStrip is a three-module rackmount power supply designed for use with their 500 series modular audio devices.

Unlike other single-space power racks that are limited to two modules, the triple-module design allows you to put together a traditional channel strip, combining a mic preamp with an equalizer and dynamic control using a compressor-limiter all within the confines of a single rack unit space. With so many choices of modules available today, this opens the door to creating unique signal paths to allow your music to stand out.

Not straying from the success of the Radial Workhorse, the PowerStrip is also 100% backwards-compatible with older API modules while being optimized for Radial's expanding range of preamps, processors, and routing devices. Its constructed with 14-gauge steel and features dual gold contact EDAC 15-pin connectors for a rugged chassis guaranteeing optimal signal transfer. The external power supply delivers 500 mA of current, so even your most voltage-hungry modules get what they need, and a separate 48V phantom tap delivers 10 mA to your microphone preamps.

It boasts several options for rear connectivity including standard XLR I/O plus 1/4" TRS connectors for multing modules, cross patching, and parallel processing. Instead of the "hardware patch" system most of the competition employs, the PowerStrip utilizes an innovative feed function, patching modules together without the need of cables; plus, stereo modules can simply be paired with a switch, so you can skip all the soldering of yesteryear.

The PowerStrip makes it extremely simple to assemble the perfect channel strip into just one rack unit to fit your audio needs. Get yours today to enhance your studio recordings and your touring sound!

Features

  • 1 RU power rack houses three 500 series modules
  • Designed to create the ultimate input strip
  • Compatible with Radial and older API systems
  • Provides up to 500 mA of shared current

Specifications

  • Audio Circuit Type: Connection bus from modules to connectors
  • Data Compression: Adheres to the Whos-Doc and VPR Alliance
  • Features: Phantom Power, OmniPort
  • Input Connectors:
    • 3 x balanced XLR male
    • 3 x 1/4" TRS
  • Output Connectors:
    • 3 x balanced XLR female
    • 3 x 1/4" TRS
  • Power:
    • External 100V - 240V AC with 48V Phantom
    • Provides 500 mA current to modules (avg. 166 mA per slot)
  • Construction: 14-gauge steel
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions (H x W x D): 1.25" x 19" x 7.25"
  • Weight: 6.7 lbs.
