Product Overview

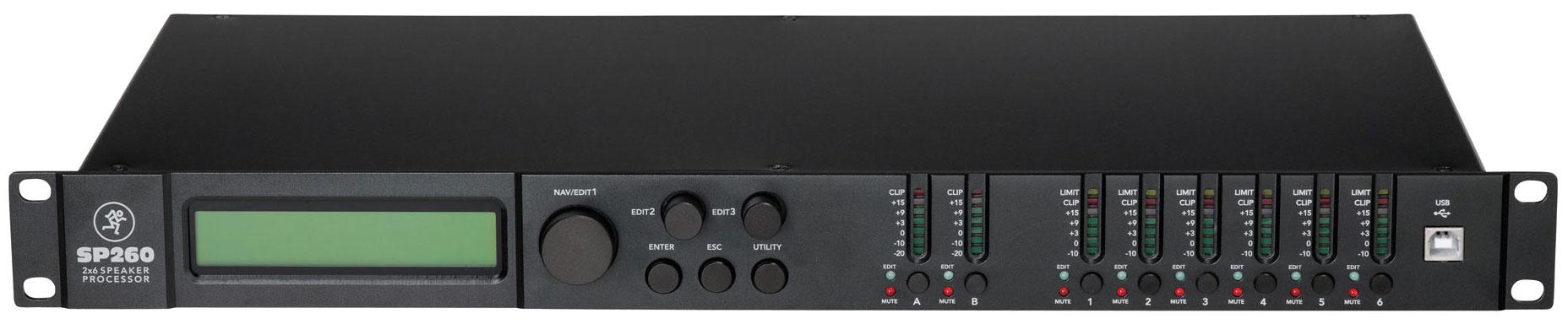

Offering sophisticated EQ, crossover, dynamics processing and system protection, the Mackie SP260 2x6 Speaker Processor provides complete system optimization for both passive and powered systems.
Five different operating modes cover a wide range of routing options. Each input and output is loaded with a huge range of processing including flexible EQ, delay, mute switches and limiting solutions. You can save up to 24 user-definable presets and I/O. The versatility allows you to professionally optimize loudspeaker systems of nearly any size, and works well for both portable and permanent install situations.
The SP260 utilizes high-end 24-bit AKM® AD/DA converters with 120 dB dynamic range for class-leading sound quality. And with the front panel USB port, you can plug in your Windows laptop (not included) and have even greater control over the system and presets with the Mackie SP260 control application (available for free download at mackie.com).
Features:
- Sophisticated, intuitive EQ, crossover, delay and dynamics processing optimizes and protects your system
- High-end 24-bit AKM AD/DA converters with 120d B dynamic range
- Two balanced XLR inputs with level control, mute, 600 ms delay and 5-band parametric/shelving EQ
- Six balanced XLR outputs with level control, mute, polarity invert, dedicated high and low pass filters, 7-band parametric/shelving EQ, 600 ms delay, and limiting
- Powerful limiter on every output for ultimate protection
- Convenient front-panel controls for parameter editing and input/output muting
- USB port for simple programming via PC
- 7-segment LED metering for input/output level or limiter activity
- 5 operating modes: 2 x stereo + sub, 3 x stereo, 2 x 2-way + sub, 2 x 3-way and 1 x 6-way
- 24 presets for storing your Mackie or other system parameters
- Switchmode power supply: 100V – 240V
- Compact, single rack unit design
Specifications
- Operating Modes and Presets:
- 2xStereo+Sub: Two full-range loudspeaker pairs and a pair of [mono by default] subwoofers
- 2x2Way+Sub: Two bi-ampable full-range loudspeakers and a pair of [mono by default] subwoofers
- 2x3Way: Two tri-ampable full-range loudspeakers
- 3xStereo: Three full-range loudspeaker pairs
- 1x6Way: Mono 6-way setup
- Inputs: 2 x XLR balanced
- Max Input (Line Level): +20 dBu
- CMRR: > 58 dB
- Gain: ±15 dB (±0.1 dB increments)
- Delay:
- Time (ms): 0.0000 - 600.9984 ms (±1.000 and ±0.0208 ms increments)
- Distance (feet): 0.000' - 670.233' (±~1.115' and ±~0.023' increments)
- 5-band EQ:
- Frequency: 20 Hz - 20 kHz (~1/24 octave increments)
- Bandwidth: 0.05 - 3.0 (±0.05 increments)
- Gain: ±15 dB (±0.05 dB increments)
- High- or Low-Shelving: 6 or 12 dB/octave
- EQ Bypass: On or Off
- Outputs: 6 x XLR balanced
- Max Output Level: +21 dBu
- Name: User-editable
- Source: InA, InB, InA+InB
- Polarity: 180° Invert
- Gain: -12.0 to +6.0+ dB (±0.1 dB increments)
- Delay:
- Time (ms): 0.0000 - 600.9984 ms (±1.000 and ±0.0208 ms increments)
- Distance (feet): 0.000' - 670.233' (±~1.115' and ±~0.023' increments)
- 7-band EQ:
- Frequency: 20 Hz - 20 kHz (~1/24 octave increments)
- Bandwidth: 0.05 - 3.0 (±0.05 dB increments)
- Gain: ±15 dB (±0.05 dB increments)
- High- or Low-Shelving: 6 or 12 dB/octave
- EQ Bypass: On or Off
- High- and Low-Pass Filters:
- Frequency: 20 Hz - 20 kHz
- Filter / Slope: No Cut-Off, Butterworth (6, 12, 18, or 24 dB/oct.), Linkwitz-Riley (12 or 24 dB/oct.), Bessel (12 or 24 dB/oct.)
- Limiter:
- Attack: 5 - 200 ms (increments vary)
- Release: 0.1 - 3.0 s (±0.1 s increments)
- Limiter Threshold: -10 to +20 dBu (±0.2 dBu increments
- AD/DA Converter Type: 24-bit AKM
- Dynamic Range: 120 dB
- Sample Rate: 48 kHz
- Bit Depth: 24-bit
- Frequency Response: 20 Hz to 20 kHz, ±0.2 dB
- Noise Characteristics:
- Dynamic Range: 111 dB A-weighted / 108 dB unweighted
- Distortion: 20 Hz to 20 kHz, < 0.004%
- Crosstalk (22 Hz to 22 kHz [unweighted]):
- Interchannel Crosstalk +20 dBu @ 1 kHz: -107 dB
- Crosstalk Input to Output +20 dBu @ 1 kHz: -107 dB
- USB Port: 1.1 (for programming via Windows-based computers / downloadable app at mackie.com)
- Dimensions (H x W x D): 1.8" (1 RU) x 19.0" x 9.0"
- Weight: 5.8 lbs.
