ADJ D6 Branch DMX Splitter, 1x 3-pin DMX In, 6x 3-pin DMX Out

OUR PART #: D6-BRANCH MFR #: D6B774

Copied to clipboard

The ADJ D6 Branch is a 6-way DMX Splitter/amplifier. Each output is electrically and optically isolated from the input, and from every other output by optical couplers. ...Read more

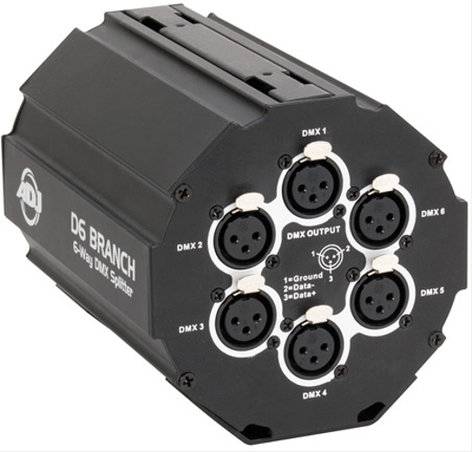

ADJ D6 Branch DMX Splitter, 1x 3-pin DMX In, 6x 3-pin DMX Out Image 1
ADJ D6 Branch DMX Splitter, 1x 3-pin DMX In, 6x 3-pin DMX Out
Our Price: $249.99
List Price: $345.95
You save 28%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ADJ D6 Branch is a 6-way DMX Splitter/amplifier. Each output is electrically and optically isolated from the input, and from every other output by optical couplers. It makes running DMX cable to lighting fixtures easier and more efficient. It features one DMX Input, 6 DMX Outputs and 1 DMX Thru. The D6 Branch also includes two Velcro straps and a clamp-mounting bracket.

ADJ D6-BRANCH Features:

  • 6-Way DMX Splitter & amplifier
  • 1x DMX In, 6x DMX Out & 1 DMX Thru (all 3-pinXLR’s)
  • Link with other D6 Branch Splitters
  • Input & outputs are electrically and optically isolated from each other
  • Includes 2x Velcro straps to securely attach to truss
  • Clamp mount bracket included
  • On/Off power switch

ADJ D6-BRANCH Specifications:

  • Multi-voltage operation: AC 100-240V, 50/60Hz (IEC Socket)
  • Dimensions (LxWxH): 4.75” x 5” x 6” (118.5 x 122.5 x 153mm)
  • Weight: 2.5 lbs (1 kg.)
