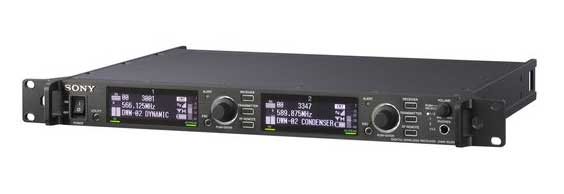

Sony DWRR02D/30
Digital Wireless Receiver


Our Price: $3,348.04
List Price: $4,699.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The DWR-R02D dual-channel diversity receiver supports 2-ch operation and remote control of the wireless system (access to TX and RX settings) from the front panel of the receiver. Each channel is equipped with a large OLED display for easy operation. To assist in wireless system set-up, the digital wireless receiver includes both clear channel and active channel scan functions. A pair of external AN series antennas (optional) can be connected (cascaded) with up to 8 x DWR-R02D’s, eliminating the need for an external antenna divider. In addition, the receiver is supplied with remote control software, to allow monitoring the status of wireless system parameters remotely, using a Windows PC.


  • High quality 48 kHz / 24 bit digital audio
  • Digital modulation offers reliable/secure transmission and it's less subject to interference
  • Includes up to 50% increase in the number of wireless audio channels
  • Innovative wireless remote control of the transmitter from the receiver (using 2.4 GHz IEEE802.15.4 communication technology)
  • Includes clear channel and active channel scanning
  • Supports AES3 digital and analog audio outputs
  • UHF-TV channels 30 to 36 (566 to 607 MHz) and UHF-TV channels 38 to 41 (615 to 638 MHz)


  • Audio Output Connector  Analog audio: XLR (2) and 1/4" phone (2) ; AES/EBU digital audio: XLR (1) and BNC (1)
  • Power Requirements  100V - 240V AC; 12V DC (4-Pin XLR)
  • Battery Life  NA
  • Dimensions  19" x 1 3/4" x 13 1/4" ( W x H x D)
  • Weight  7 lb 15 oz
  • Compatibiity  For use with DWX Series digital wireless products operating within the same frequency block

Tuners Specifications

  • Receiving Channels  UHF-TV chs 30–36 and chs 38–40 (60 MHz bandwidth). 566 MHz to 607 MHz and 615 MHz to 638 MHz.

Click to download

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
