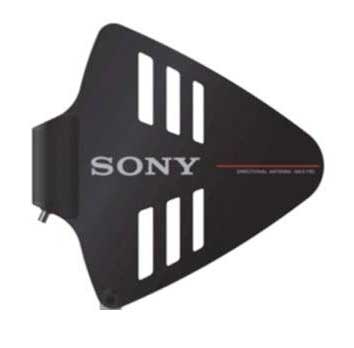

Sony AN01
Active Directional UHF Paddle Antenna

OUR PART #  AN01

Our Price: $527.93
List Price: $650.00
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Active Directional Antenna. Provides 0 dB,10 dB or 18dB of gain. Various mounting configurations (mic stand, etc.). Two required for Diversity Tuner Operation. This AN-01 is for use with with UHF-TV channels 14 - 69.

Features:

  • Active directional antenna, works with rack-mount tuner base models MB-X6 and MB-8N/9F, with WD-850/9F divider or with DWR-R01D digital wireless receiver
  • Manages wide band operation 470MHz - 862MHz
  • Receives DC power from receiver
  • Adds 0 dB, 10 dB or 18 dB of gain. Compensates for cable loss/working distance
  • Supplied with microphone stand attachment/pole grip

Specifications:

  • Antenna section
    Frequency range: 470 to 862 MHz
    Antenna gain: 5 dBi or more
    Voltage standing wave ratio: 2.5 or less
    Half power angle: 150 degrees or less
    Front to back ratio: 12 dB or more
  • Booster section
    Frequency range: 470 to 862 MHz
    Booster gain: 18 dB/10 dB/0 dB, switchable
    Output impedance: 50 ohms
    Voltage standing wave ratio: 3 or less
    Noise figure: 6 dB or less
    Third order intermodulation: 60 dB or more (95 dBµVEMF input)
    Output connector: BNC-R type
    Supply voltage: 9 V/12 V DC
    Current consumption: 100 mA or less
  • General
    Operation temperature: 0 °C to 50 °C (32 °F to 122 °F)
    Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)
  • Dimensions (unit: mm (inches))
    343 × 341 × 36 (13 5/8 × 13 1/2 × 1 7/16) (w/h/d) (excluding microphone stand attachment pole/grip)
  • Supplied accessories
    Microphone stand attachment pole/grip (1 set)
  • Stand Adapter
    PF1/2 to W5/8 type (1)
    PF1/2 to W3/8 type (1)
    Operating Instructions (1)
    Warranty card (1)
    Warranty booklet (1)

Click to download

Sony AN01
Active Directional UHF Paddle Antenna

OUR PART #  AN01

Product Information:

Active Directional Antenna. Provides 0 dB,10 dB or 18dB of gain. Various mounting configurations (mic stand, etc.). Two required for Diversity Tuner Operation. This AN-01 is for use with with UHF-TV channels 14 - 69.

Features:

  • Active directional antenna, works with rack-mount tuner base models MB-X6 and MB-8N/9F, with WD-850/9F divider or with DWR-R01D digital wireless receiver
  • Manages wide band operation 470MHz - 862MHz
  • Receives DC power from receiver
  • Adds 0 dB, 10 dB or 18 dB of gain. Compensates for cable loss/working distance
  • Supplied with microphone stand attachment/pole grip

Specifications:

  • Antenna section
    Frequency range: 470 to 862 MHz
    Antenna gain: 5 dBi or more
    Voltage standing wave ratio: 2.5 or less
    Half power angle: 150 degrees or less
    Front to back ratio: 12 dB or more
  • Booster section
    Frequency range: 470 to 862 MHz
    Booster gain: 18 dB/10 dB/0 dB, switchable
    Output impedance: 50 ohms
    Voltage standing wave ratio: 3 or less
    Noise figure: 6 dB or less
    Third order intermodulation: 60 dB or more (95 dBµVEMF input)
    Output connector: BNC-R type
    Supply voltage: 9 V/12 V DC
    Current consumption: 100 mA or less
  • General
    Operation temperature: 0 °C to 50 °C (32 °F to 122 °F)
    Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)
  • Dimensions (unit: mm (inches))
    343 × 341 × 36 (13 5/8 × 13 1/2 × 1 7/16) (w/h/d) (excluding microphone stand attachment pole/grip)
  • Supplied accessories
    Microphone stand attachment pole/grip (1 set)
  • Stand Adapter
    PF1/2 to W5/8 type (1)
    PF1/2 to W3/8 type (1)
    Operating Instructions (1)
    Warranty card (1)
    Warranty booklet (1)

Click to download

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
