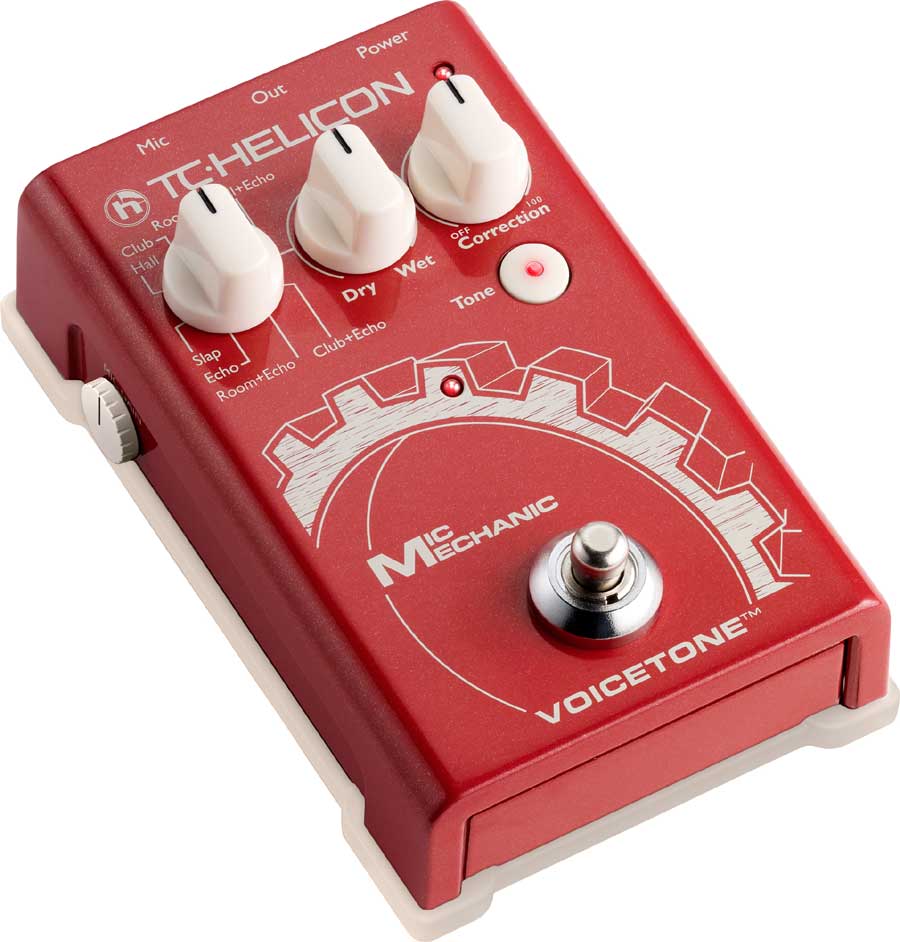

TC Helicon MIC MECHANIC
Voice Effects Pedal

OUR PART #  VOICETONE-MIC-MECHNC

Our Price: $149.99
List Price: $224.99
You save 33%! (Low Price Guarantee)
In Stock

One of the most crucial components of any vocal performance is a great sound. It starts with your voice, then the microphone, then what? That’s where the Mic Mechanic steps in and gives you the perfect amount of shine and polish.

Features:

  • 8 high quality reverb and echo combinations
  • Footswitch tapping can match echo repeats to song tempo
  • Tone button for adaptive EQ, compression, de-essing and gating
  • Auto-chromatic pitch correction
  • Easy inline connection between standard mic and mixer
  • Phantom power always available
  • USB connection to free VoiceSupport application offering updates, product-specific news and more
  • Mic Control (patent pending) allows remote on/off switching with optional TC-Helicon MP-75 mic

Specifications:

Effects

  • Echo & Delay
  • Reverb
  • Tone
  • Correction

Control

  • 8 high quality Reverb and Echo presets
  • Dry/Wet mix
  • Correction amount
  • Adaptive Tone on/off
  • Mic Control on/off
  • Mic input gain level
  • Footswitch on/off

Size

  • Height: 5.4 inches (140 mm)
  • Width: 3.5 inches (90 mm)
  • Depth: 2.3 inches (60 mm)

Weight

  • Weight: 0.92 lb. (0.42 kg)

Construction

  • Two part dies cast metal
  • Rubberized base

Analog Inputs

  • Connectors, balanced: Mic.: XLR
  • Mic Input Level @ 0 dBFS: -42dBu to +1dBu
  • EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
  • Mic input SNR: >104 dB

Analog Outputs

  • Output Impedance, Bal./Unbal.: 200/100 Ohm
  • Output Full Scale: +1 dBu
  • Dynamic Range: >104 dB, 20 Hz to 20 kHz
  • Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz

Control

  • USB for firmware and control
  • Mic Control using TC-Helicon MP-75 Microphone

Power

  • Power Supply (Supplied): 12V .4A
  • Power Consumption: 5.6W

Safety

  • EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
  • Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

Operating Requirements

  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -22°F to 167°F (-30°C to 70°C)
  • Humidity: Max. 90 % non-condensing

Includes:

  • Region specific power supply
  • USB cable
  • User guide
  • 1 year warranty parts and labor
