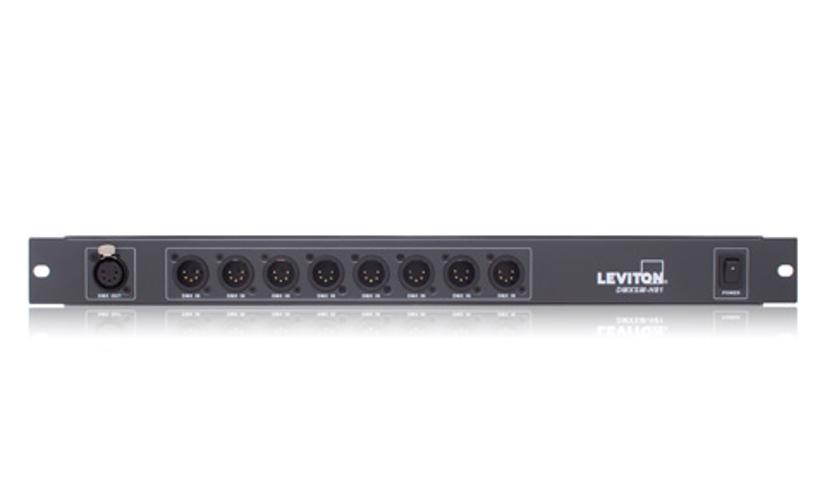

Leviton DMXSM-H81
8-Input DMX Signal Management Merger


NSI's DMXSM-H81 DMX merger is used when multiple control inputs must communicate to the same device.
Learn More
Our Price: $616.95
List Price: $675.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Leviton DMXSM-H81
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NSI's DMXSM-H81 DMX merger is used when multiple control inputs must communicate to the same device.  A DMX merger helps to completely rid a system of complex, error-prone, multi-location DMX input wiring schemes.  This merger combines all (8) inputs, using a highest level takes precedence (HTP) philosophy into a single 512 channel DMX output.  All inputs are optically isolated from each other to ensure the protection of sensitive equipment.

Leviton DMXSM-H81 Features:

  • 8 Inputs, 1 Output
  • Inputs merge in highest level takes precedence (HTP)mode
  • 100% Optically isolated inputs
  • Inputs rated to withstand max +48Vdc
  • DMX-512A Compliant
  • Built-in Power Switch
  • 2-part terminals at rear, series wired, for permanent install
