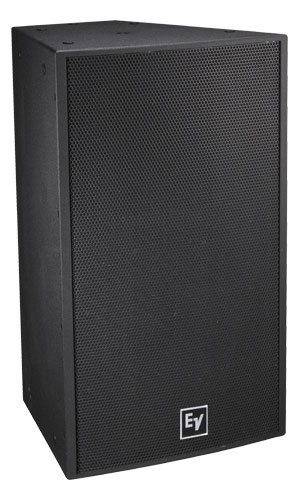

Electro-Voice EVF-1152S/99 BLACK
15" Two-Way Loudspeaker, 90° x 90° Waveguide


The EVF-1152S/99 features a 90° x 90° rotatable waveguide, design for far field long throw raw spread coverage pattern. This speaker comes in the color black.
Learn More
Our Price: $1,989.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Electro-Voice EVF-1152S/99 BLACK
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EVF-1152S/99 features a 90° x 90° rotatable waveguide, design for far field long throw raw spread coverage pattern. This speaker comes in the color black.

Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget.

EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.


  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40º to 90º
  • 101 dB sensitivity, 134 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)


  • Environmental Specs  Standard versions: IEC 60529 IP44
  • Input Connections  Phoenix/Euroblock style screw terminals
  • Frequency Response (-3 dB)  70 - 14000 Hz
  • Frequency Response (-10 dB)  41 - 18000 Hz
  • Recommended High-Pass Frequency  45 Hz
  • Sensitivity 1 W/1 m  101 dB
  • Max. SPL/1m (calc)  134 dB
  • Coverage (Nominal -6 dB)  H 90 °
  • Coverage (Nominal -6 dB)  V 90 °
  • System Power Handling (Continuous/Program/Peak)  500/1000/2000Watts
  • LF Transducer  SMX2151, 15 in (381mm) Driver
  • HF Transducer  ND2B, 2 in (51 mm) Diaphragm Compression Driver
  • Crossover Frequency  1450 Hz
  • Nominal Impedance (Passive)  8 ohm
  • Minimum Impedance  6 ohm
  • Enclosure Material  13 Ply Weather Resistant Birch
  • Grill  Standard versions: 16 GA Galvanneal, Powder coat, with Rotatable Logo
  • Suspension  (22) M10 Threaded Points
  • Height  768.6 mm (30.26")
  • Width  469.8 mm (18.5")
  • Depth  466.6 mm (18.37")
  • Weight Net  32.1 kg (70.77 lbs)
