DAS ACTION-M12A 12" 2-Way Active Floor Monitor, 1000W

OUR PART #: ACTION-M12A

Copied to clipboard

The DAS Audio Action M12A is a powered stage monitor that incorporates a 12" D.A.S. speaker for bass reproduction. ...Read more

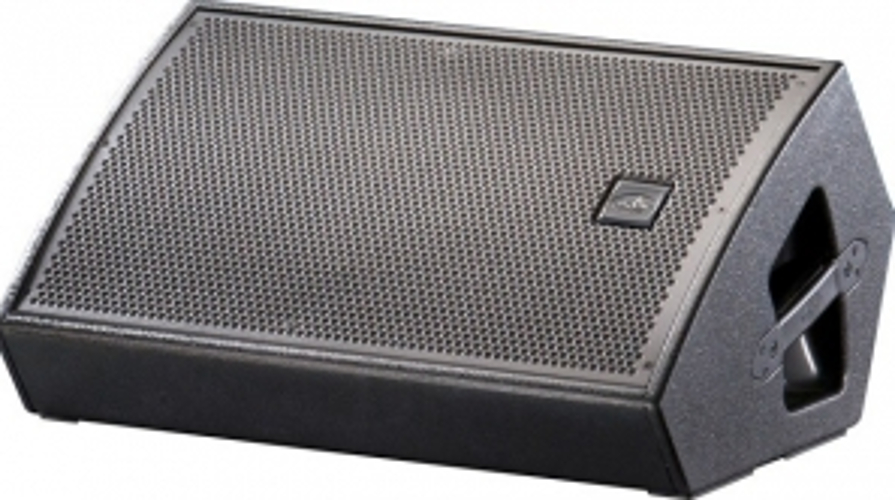

DAS ACTION-M12A 12" 2-Way Active Floor Monitor, 1000W Image 1
DAS ACTION-M12A 12" 2-Way Active Floor Monitor, 1000W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The DAS Audio Action M12A is a powered stage monitor that incorporates a 12" D.A.S. speaker for bass reproduction. High frequencies are handled by an M-34 compression driver with 1” exit and titanium diaphragm.

The "low profile" enclosure design is made from Birch plywood and finsihed with a durable black paint. A 35 mm pole mount socket widens the versatility of the Action M12A monitor.

DAS Audio ACTION-M12A Features:

  • 2-way powered stage monitor system
  • Two channel Class D amplifier with 1000 W peak power
  • 12” D.A.S. bass loudspeaker
  • Compression driver with 1” exit
  • Low-profile design for minimum visual impact
  • Two side located handles
  • Durable black paint finish

DAS Audio ACTION-M12A Specifications:

  • Amplifier Power: 1000 W, peak, 500 W continuous
  • Class: D, Biamplified
  • Frequency Range (-10 dB): 60 Hz - 20 kHz
  • Rated Peak SPL at 1 m: 130 dB
  • Dispersion: 80º x 50º
  • Enclosure Material: Birch Plywood
  • Color/Finish: Black/Paint
  • Connectors:
    • INPUT: Female XLR
    • LOOP THRU: Male XLR
    • AC INPUT: Male IEC
  • AC Requirements:
    • 115 V, 2.4 A, 50 Hz/60 Hz
    • 230 V, 1.2 A , 50 Hz/60 Hz
  • Dimensions (HxWxD): 16.6" x 25.4" x 12.5" (42x 64.5 x 31.6 cm)
  • Weight: 19 kg (41.8 lb)
