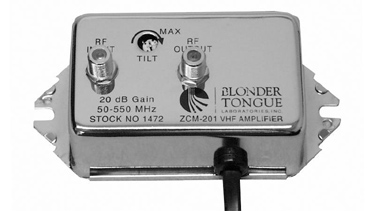

Blonder-Tongue ZCM-201
+20dB VHF/CATV Distribution Amplifier

OUR PART #:  ZCM-201

The ZCM -101/201 distribution amplifiers are designed for special purpose applications in the MATV, SMATV, Private and Wireless Cable markets.
Learn More
Sale Price: $15.40
List Price: $17.49
You save 12%!
Write the first review.
Blonder-Tongue ZCM-201
Qty:
Similar Products

The ZCM -101/201 distribution amplifiers are designed for special purpose applications in the MATV, SMATV, Private and Wireless Cable markets. These low noise amplifiers cover the frequency range of 50 to 550 MHz and provide either 10 or 20 dB of gain depending on model.

Features:

  • 50-550 MHz Bandwidth
  • 10 and 20 dB Gain Models
  • Low Noise Figure
  • Manual Tilt Control (ZCM-201)
  • Compact Housing

Specifications:

  • Frequency Range (MHz): 50-550
  • Gain (dB): 20
  • Noise Figure (dB): 3.5
  • Impedance - All Ports (O): 75
  • Power Requirements:
      -  Voltage (VAC): 117, ±10%
      -  Frequency (Hz): 60
      -  Power (W): 1.4
  • Temperature Range (°C): 0 to +50
  • Dimensions (L x W x D):
      -  4.88" x 2.00" x 2.50"
      -  124mm x 51mm x 64mm
  • Weight:
      -  0.5 lbs.
      -  0.23 kg.
  • Tilt: Var. Control
  • Connectors (Top Panel):
      -  RF Input: "F" Female
      -  RF Output: "F" Female
