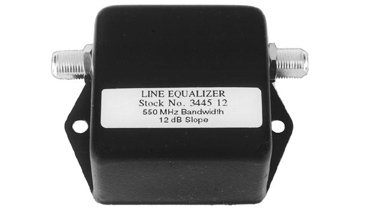

Blonder-Tongue LE-550
550MHz Line Equalizer

OUR PART #:  LE-550

The LE Series includes professional quality, line equalizers, designed to compensate for cable tilt.
Learn More
Selected Model Price: $74.63
List Price: $75.23
Write the first review.
Blonder-Tongue LE-550
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The LE Series includes professional quality, line equalizers, designed to compensate for cable tilt. These equalizers restore proper balance to large distribution networks by attenuating the low frequencies while passing the high frequencies through with little loss. The LE Series can be used with locally powered amplifiers which may not have adequate slope control or for cascades in lieu of more costly cable powered preamplifiers.

Specifications:

  • Frequency Range (MHz): 50-550
  • Frequency Response (dB): ┬▒0.5
  • EQ Values (dB): 3, 6, 9, 12, 15, 18
  • Insertion Loss (dB) (Adds to EQ Value): ┬▒0.5
  • Impedance - All Ports (O): 75
  • Return Loss - Input/Output (dB): 18
  • Dimensions (L x W x D):
      -  2.88 x 1.38 x 2 in.
      -  73 x 35 x 51 mm
  •  Weight: 6 oz., 170 g
