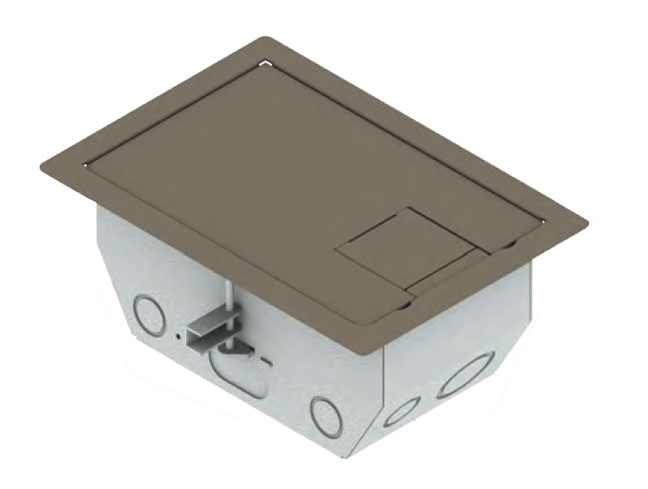

4.5" Deep Back Box, Clay Trim, Three 1-Gang Openings


Note: Product shown in image is for illustrative purposes only. Not representative of actual product.
Learn More
Our Price: $250.47
List Price: $253.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Note: Product shown in image is for illustrative purposes only. Not representative of actual product.

FSR introduces a new line of Raised Access Floor Boxes designed for flexibility, durability and style. To safely handle the rigors of a floor environment, the RFL Series is constructed entirely of steel, including the carpet rim.

The RFL4.5-D1G-CLYDD is a 4-11/16” deep floor box with 2 standard single gang openings on opposite sides of the box and 1 single gang opening on the bottom for data. The data plate insert is removable for added room in the box. The carpet rim and cable exit door comes in clay.


  • Patented epoxy wrinkle powder finish
  • Choice of three cover styles; solid, single-door and dual-door
  • 14-gauge steel construction
  • Cover thickness 3/16"
  • Oversize cable door(s)
  • Standard electrical plate openings on all models
  • Superior mounting clamp design to handle a wide variety of floor thicknesses
  • Listed by UL to meet US and Canadian safety standards
  • Large multi-compartment boxes for power, audio, video, data and more!
  • Multiple knockouts in a variety of sizes
  • Choice of two box depths
  • Choice of two gang layout styles


  • Box Volume (Less Panels) 169 cu in.
  • Device Compartment Volume 39 cu in.
  • Brackets Includes - 3 Single Gang (2 power and 1 Data)
  • Number and Size of Knockouts
  • 2 - .5” on the bottom
  • 6 - .5” - .75” on the sides
  • 2 - 1” - 1.25” on the sides
  • 3 - 1” x 2” oval on the sides
  • Cover Material - 16/14 ga Steel under 11 ga Steel Support
  • Support flange Material - 14 g galvanized Steel
  • Max No of Insert Brackets - 3-single gang (Provided)
