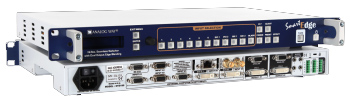

Analog Way STE100
Hi-Res Switcher with edge blend

OUR PART #:  STE100

This unit is a high-resolution mixer seamless switcher with dual output edge blending for large screen and low cost installations.
Learn More

Add to Cart to See Price

Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Analog Way STE100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This unit is a high-resolution mixer seamless switcher with dual output edge blending for large screen and low cost installations.

Features:

  • Hi-Resolution Seamless Switcher with Dual Output Edge Blending
  • Up to 3 x STE100 for Large Screen with 6 Video Projectors
  • 10 inputs including 2 x DVI-I and 2 x 3G/HD/SD-SDI
  • 1 Live PIP on a Live Background with numerous effects
  • Dual PIP mode on colored Background
  • Horizontal or Vertical Edge Blending
  • 2 DVI Inputs
  • 6 Universal Analog Inputs
  • 2 x 3G/HD/SD-SDI
  • SDTV, EDTV, HDTV and Computer formats up to 2K
  • Full digital In/Out Processing
  • 2 Analog and Digital Outputs: Output #1 & Output #2
  • Computer Formats up to 2K, or 3G-SDI
  • RGBHV, DVI and HDTV
  • 1 Operation Mode: Dual Output Edge Blending
  • Live Background fully resizable
  • Transitions: Fade (Dissolve), Cut, Clean Cut, Wipe, Slide
  • Dynamic Fit: Automatic adjustment of the Layer to fit the image borders
  • Smooth Move Effect
  • Chroma/Luma Key/DSK Title
  • Keying and Titling are available with an external Remote Control
  • DSK on Analog or Digital inputs

Specifications:

6 Universal Inputs - Analog Inputs (All inputs #1 to #6)

  • SD-TV:
      -  Composite, S.Video, YUV, RGsB or RGBS
      -  NTSC: 15.735kHz/60Hz
      -  PAL/SECAM: 15.625kHz/50Hz
  • ED/HD-TV:
      -  RGsB, RGBS or YUV
      -  480p/60 Hz – 576p/50 Hz - 720p, 1080i, 1035i/50 or 60Hz – 1080p/24, 25, 30, 50 or 60 Hz – 1080psF /24, 25 or 30 Hz
  • Computer
      -  RGBHV, RGBS or RGsB
      -  Resolution up to 1600x1200/60 Hz, 1920x1200/60 Hz or 2048x1080/60 Hz
      -  Horizontal frequency from 31.5 to 130 kHz
      -  Vertical frequency up to 130 kHz
      -  FpxMax = 165MHz

4 Digital Inputs (DVI-I 1, DVI-I 2, SDI1 and SDI2)

  • DVI-I: SD-TV, ED-TV, HD-TV and Computer formats
  • SDI: SD-TV & HD-TV – YUV/10bits/4:2:2, or 3G-SDI
  • Automatic synchronization detection

Outputs #1 to #2

  • Computer Digital and Analog:
      -  RGBHV, RGBS or RGsB and DVI
      -  Resolution up to 1600x1200/60 Hz, 1920x1200/60 Hz or 2048x1080/60 Hz
      -  Vertical frequency 50, 60, 72 or 75 Hz depending on Output format
      -  FpxMax = 165MHz
  • HD-TV:
      -  RGsB, RGBS or YUV, DVI
      -  720p, 1080i, 1035i/50 or 60Hz - 1080p/24, 25, 30, 50 or 60Hz - 1080psF/24, 25 or 30Hz

Operation Standards

  • Standards: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M and SMPTE 424M

Audio Stereo In/Out

  • Input:
    - 6 Audio stereo inputs + 1 Auxiliary + 2 Embedded SDI
    - AUX Balanced
    - Vi = +15dB
    - Zi = 20 kOhms (Unbalanced)/40 kOhms (Balanced)
    - Adjustable Level per input
  • Output:
    - 1 output
    - Balanced/Unbalanced
    - Vo = +15 dBu/300 Ohms (Unbalanced)
    - Vo = +21 dBu/600 Ohms (Balanced)

User Controls - Front Panel

  • Standby On/Off
  • Inputs selection
  • Freeze/Black
  • Effect and preset selection
  • Large Graphic VFD screen with control knobs and buttons for easy and fast access to menus and adjustments

Connectors - Rear Panel

  • Input #1 to #4 Connectors: HD15-F: (Analog SD/ED/HD-TV and Computer)
  • Input #5 to #6 and DVI-I 1 to DVI-I 2 Connectors: DVI-I Female: (Analog SD/ED/HD-TV and Computer)
  • Input SD/HD-SDI: SDI 1 & SDI 2: BNC-F
  • Audio:
      -  3.5mm Stereo jack: inputs #1 to #4
      -  5-pin MCO connectors: 2 for Inputs and 1 for Output
  • DB9: Dual RS232 for remote control
  • RJ45: Ethernet connection
  • AC main connector with On/Off switch

Connectors - Outputs #1 to #2

  • Each output is fitted with:
    - DVI-I Female: (Digital and Analog) RGB or YUV
    - HD15 Female: RGB or YUV

Dimensions

  • 1U, 19”
  • D 13,8’’ x W 19’’ x H 1.74’’
  • D 330 mm x W 480 mm x H 44 mm
  • Weight: 4,3kg/9.48lbs


Power Supply

  • Internal, universal, automatic, 100-250V; 50/60 Hz; 140 W (UL, CSA, GS, CE)

What's Included:

  • 1 x Power supply cord
  • 2 x DVI-I male to HD15 Female and DVI-D Female Break out cable
  • 1 x HD15 to 5 BNC cable
  • 1 x Ethernet cross cable (for update)
  • 1 x Set of 3 audio 5-pin screw terminals
  • 1 x Remote Control Software (RCS) (PC only)
  • 1 x User Manual* (PDF Version)
  • 1 x Quick Start Guide
  • Warranty
  • 3-year warranty on parts and labor back to factory
