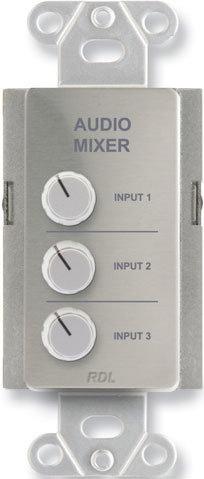

Radio Design Labs DS-RC3
Stainless Steel Remote Audio Mixing Control

OUR PART #  DS-RC3

Our Price: $118.92
List Price: $159.07
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Radio Design Labs' DS-RC3 remote audio mixing control provides user-accessible volume knobs for two or three sources.  Each control is available with level controls only, or with level controls plus a muting button for each channel.  They function exactly as a mixer without the need to send audio to and from the remote location.  A rear-panel RJ45 jack provides the connection for standard twisted-pair wiring between the remote control and an RDL remote-controlled mixer.  The cable sends the knob position and muting status data to the mixer.  All audio signals remain local to the mixer which uses VCA technology to set the mixer levels.  A long life 10 kO potentiometer is used in the control for setting the VCA voltage.  Muting models provide a MUTE button for each mixer channel that alternately mutes or un-mutes the audio.  An LED MUTE indicator glows red when the signal is muted and turns green when the audio channel is active.

Features:

  • Three Channel Remote Audio Mixing Control Panel
  • Single-Turn Rotary Controls
  • Single Control Location
  • Direct Control of RDL Mixers with an RJ45 Remote Control Port
  • Standard Twisted-Pair Interconnection to Mixer

Specifications:

  • Compatibility: RDL remote controlled mixers (light blue color-coded control jack)
  • Control connector: RJ45
  • Mounting: Mounts in standard US electrical box; cover plate available separately
  • Dimensions: 4.1" H x 2" D x 1.7" W (10.4 x 5 x 4.33 cm)

Radio Design Labs DS-RC3
Stainless Steel Remote Audio Mixing Control

OUR PART #  DS-RC3

Product Information:

Radio Design Labs' DS-RC3 remote audio mixing control provides user-accessible volume knobs for two or three sources.  Each control is available with level controls only, or with level controls plus a muting button for each channel.  They function exactly as a mixer without the need to send audio to and from the remote location.  A rear-panel RJ45 jack provides the connection for standard twisted-pair wiring between the remote control and an RDL remote-controlled mixer.  The cable sends the knob position and muting status data to the mixer.  All audio signals remain local to the mixer which uses VCA technology to set the mixer levels.  A long life 10 kO potentiometer is used in the control for setting the VCA voltage.  Muting models provide a MUTE button for each mixer channel that alternately mutes or un-mutes the audio.  An LED MUTE indicator glows red when the signal is muted and turns green when the audio channel is active.

Features:

  • Three Channel Remote Audio Mixing Control Panel
  • Single-Turn Rotary Controls
  • Single Control Location
  • Direct Control of RDL Mixers with an RJ45 Remote Control Port
  • Standard Twisted-Pair Interconnection to Mixer

Specifications:

  • Compatibility: RDL remote controlled mixers (light blue color-coded control jack)
  • Control connector: RJ45
  • Mounting: Mounts in standard US electrical box; cover plate available separately
  • Dimensions: 4.1" H x 2" D x 1.7" W (10.4 x 5 x 4.33 cm)
