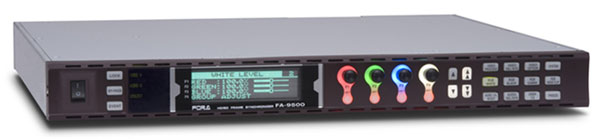

FOR-A Corporation FA-9500
Signal Processor, 3G/HD/SD

OUR PART #:  FA-9500

The FA-9500 is a multipurpose signal processor loaded with the functions you need for video production.
Learn More
Our Price: $3,072.00
List Price: $3,200.00
Write the first review.
FOR-A Corporation FA-9500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The FA-9500 is a multipurpose signal processor loaded with the functions you need for video production. It supports 3G-SDI, HD/SD-SDI, and analog composite I/O, in addition to its functionality as a frame synchronizer, provides up/down/cross/aspect converters, second converter (down/cross/aspect conversion), color corrector, and automatic video optimizer (AVO) as standard features.

It can convert many types of video and audio signals. The numerous additional functions include, as options, analog component I/O, frame rate converter, logo generator, Dolby E encoder and Dolby E decoder. By combining these varied options, a single unit can provide the optimal functionality for all video production scenes, including line, relay, reporting, production, editing and delivery. As long as you have the FA-9500, you won't need any other peripheral video equipment.

The FA-9500 is a multipurpose signal processor loaded with the functions you need for video production. The FA-9500 offers a wide range of options that let you expand with the functions you need without waste. There are all types of functions you can add, starting with video I/O boards. These options include: Frame Rate Converter and Dolby E encoder/decoder.

Features:

  • 3G-SDI/HD-SDI/SD-SDI/Analog Composite I/O
  • Powerful Frame Synchronizer Performance
  • Automatic Video Optimizer (AVO)
  • 3G Signal Support
  • Digital/Analog Audio I/O
  • Up/Down/Cross/Aspect Converters
  • Second Converter
  • Color Corrector
  • Logo Generator
      -  Other Features (Standard Functions):
      -  Video delay
      -  2D/3D comb filter for Y/C separator (composite)
      -  Web browser-based monitoring and control

Specifications:

  • Video Formats  1080/59.94p, 1080/50p (Level-A), 1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
  • Additional Formats (option)  1080/60i, 1080/60p, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/24p, 1080/23.98p, 720/60p
  • Video Input  3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75 ohm x 2 BNC / Analog Composite: 1.0 Vp-p, 75 ohm BNC x 1
  • Video Input (option)  HD Analog Component / SD Analog Component
  • Video Input HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75 ohm BNC x 1
  • Video Output  3G-SDI: 3 Gbps or HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75 ohm BNC x 4 (2 x 2 outputs) / Analog Composite: 1.0 Vp-p, 75 ohm BNC x 2
  • Video Output (option)  HD Analog Component / SD Analog Component
  • Video I/O Process  3 inputs (standard) or 4 inputs (maximum input) -> 1 processing -> 2 x 2 outputs
  • Video Processing  4:2:2 Digital Component
  • Quantization  3G/HD/SD-SDI: 10-bit / Analog Composite: 12-bit
  • Time Code Output  3G-SDI: Y: 148.5 MHz, C: 74.25 MHz / HD-SDI: Y: 74 MHz, C: 37 MHz / SD-SDI: Y: 13.5 MHz, C: 6.75 MHz
  • Frequency Response  100 kHz to 4.2 MHz: -0.5 dB to +0.5 dB, 4.2 MHz to 5.0 MHz: -1.0 dB to +1.0 dB, roll off above 5.0 MHz (NTSC, composite) / 100 kHz to 4.2 MHz: -0.5 dB to +0.5 dB, 4.2 MHz to 5.5 MHz: -1.0 dB to +1.0 dB, roll off above 5.5 MHz (PAL, composite)
  • DG/DP  1% / 1º (composite)
  • S/N ratio  60 dB (without quantization noise, composite)
  • K-factor (2T pulse)  1% (composite)
  • Comb filter  2D or 3D comb filter (selectable, composite)
  • Genlock Input  BB: NTSC 0.429 Vp-p/PAL 0.45 V p-p or Tri-level Sync: 0.6 Vp-p, 75 ohm BNC x 1, loop-through (Terminate with 75 ohm terminator, if unused.)
  • Synchronizer mode:
      -  Frame Sync mode
      -  Line Sync mode
      -  AVDL mode
      -  Input Sync mode

System phase control:

  • Frame Sync mode
      -  H phase: -1/2 H to +1/2 H
      -  V phase: -1/2 frame to +1/2 frame
      -  Maximum delay: 1 frame + 1H, Minimum delay: +1 H
  • Line Sync mode
      -  H phase: -1/2 H to +1/2 H
      -  V phase: -1/2 frame to +1/2 frame
      -  Maximum delay: 1 H +1/2 H, Minimum delay: +1/2 H
  • AVDL mode
      -  H phase: -1/2 H to +1/2 H
      -  V phase: -1/2 frame to +1/2 frame
      -  Maximum delay: 5 H +1/2 H, Minimum delay: +1/2 H (HD)
      -  Maximum delay: 1 H +1/2 H, Minimum delay: +1/2 H (SD)
  • Input Sync mode
      -  H phase: -1/2 H to +1/2 H
      -  V phase: -1/2 frame to +1/2 frame
      -  Maximum delay: 1 frame, Minimum delay: +520 clk
  • Video Delay  Maximum 8 frames(Frame Sync or Input Sync)
  • Video Processing Functions
      -  Up/Down/Cross converter
      -  Aspect ratio converter
      -  Proc Amp
      -  Color Corrector
      -  Automatic video optimizer (AVO)
      -  Second converter (Down/Cross/Aspect ratio)
  • Proc Amp
      -  Video level: 0.0% to 200.0%
      -  Chroma level: 0.0% to 200.0%
      -  Black level: -20.0% to 100.0%
      -  HUE: -179.8° to +180°
  • Video Clip
      -  YPBPR mode
      -  RGB mode
      -  Composite mode
  • Color correction
      -  Balanced mode
      -  Differential mode
      -  Sepia mode

Audio Input:

  • Embedded Audio
      -  3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16-bit to 24-bit, synchronous/asynchronous
      -  SD: 16 channels (Group 1 to 4), 48 kHz, 16-bit to 24-bit, synchronous only
  • AES/EBU
      -  Unbalanced, 1.0 Vp-p, 75 ohm BNC x 4 for AES/EBU input/output, Maximum 4 pairs of stereo channels, 48 kHz, 16-bit to 24-bit
  • Analog Audio
      -  Balanced or unbalanced, 4 outputs (2 stereo channels), 25-pin D-sub (female) x 1 for analog audio input/output, less than 100 ohm, 48 kHz, 24-bit
  • Audio Delay  2 ms to 1,000 ms (adjustable in 1 ms steps)
  • Audio Processing (Set per channel)
      -  Sampling rate converter (SRC)
      -  Gain control
      -  Down mix
      -  Channel re-mapping
      -  Channel mute
  • Interfaces
      -  Ethernet: 10BASE-T/100BASE-TX/1000BASE-T, RJ-45 x 2
      -  Remote (GPI): 9-pin D-sub (male) (7 terminals) x 1, TTL negative logic level signal or Make contact

FA-95D-D/FA-95DE-E (Option):

  • Audio Input
      -  AES/EBU: Unbalanced, 1.0 Vp-p, 75 ohm BNC x 1, 48 kHz, 16-bit to 24-bit
  • Audio Output
      -  AES/EBU: Unbalanced, 1.0 Vp-p, 75 ohm BNC x 1, 48 kHz, 16/20/24-bit
  • Reference Input
      -  BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p, 75 ohm BNC x 1
  • Temperature / Humidity  0ºC to 40ºC / 30% to 90% (no condensation)
  • Power  100 V AC to 240 V AC ±10%, 50/60 Hz
  • Consumption
      -  FA-9500: 50 VA (47 W) (at 100 V AC to 120 V AC), 64 VA (52 W) (at 220 V AC to 240 V AC)
      -  with FA-95PS: 60 VA (55 W) (at 100 V AC to 120 V AC), 73 VA (56 W) (at 220 V AC to 240 V AC)
  • Dimensions / Weight  16.9 (W) x 13.8 (D) x 1.7 (H) inches / 6.6 lbs (without options)
  • Consumables (if used 24 hours a day at room temperature)
      -  Cooling fan: Replace every 3 years.
      -  Power: Replace every 5 years.
      -  Battery: Replace every 5 years. Hard disk drive: Replace every 5 years.
  • Accessories  Operation manual, AC cord, rack mount brackets

Options:

  • FA-95PS: Redundant power supply unit
  • FA-95DACBL: Digital audio expansion connector cable
  • FA-95CO: Changeover function
  • FA-95RU: Remote control unit
  • FA-95D-D: Dolby E / Dolby Digital decoder
  • FA-95DE-E: Dolby E encoder
  • FA-95AIF: Analog component input/output card
  • FA-95LG: Logo generator (GUI software)
  • Planned Features  FRC (Frame Rate Converter) (includes additional standard)

Dolby is a registered trademark of Dolby Laboratories.
