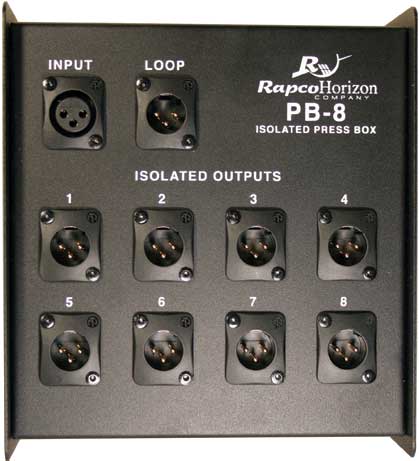

RapcoHorizon Music PB-8
8-Channel Table Top Press Box

OUR PART #  PB-8

Our Price: $207.47
List Price: $310.99
You save 33%! (Low Price Guarantee)
In Stock

RapcoHorizon's PB-8 press box is great for press conferences or any situation requiring a single mic signal to be "split" multiple times.  Its features include a rugged steel box, a single XLR female mic level source input, a "loop" output (to go to a mixing console to interface with an external phantom power supply, or to "daisy chain" this unit to a second PB-8 for additional isolated outputs), and eight discrete isolated XLR male outputs.  Due to the D.C. blocking characteristics of a transformer, the isolated outputs will not pass phantom power.  The connectors are recessed to resist damage.

Specifications:

  • Approximate size: 6-7/8" W x 7-5/8" H x 3" D
  • One XLR-F female panel mount
  • Nine XLR-M male panel mounts
  • Eight HSITT transformers

RapcoHorizon Music PB-8
8-Channel Table Top Press Box

OUR PART #  PB-8

Product Information:

RapcoHorizon's PB-8 press box is great for press conferences or any situation requiring a single mic signal to be "split" multiple times.  Its features include a rugged steel box, a single XLR female mic level source input, a "loop" output (to go to a mixing console to interface with an external phantom power supply, or to "daisy chain" this unit to a second PB-8 for additional isolated outputs), and eight discrete isolated XLR male outputs.  Due to the D.C. blocking characteristics of a transformer, the isolated outputs will not pass phantom power.  The connectors are recessed to resist damage.

Specifications:

  • Approximate size: 6-7/8" W x 7-5/8" H x 3" D
  • One XLR-F female panel mount
  • Nine XLR-M male panel mounts
  • Eight HSITT transformers
