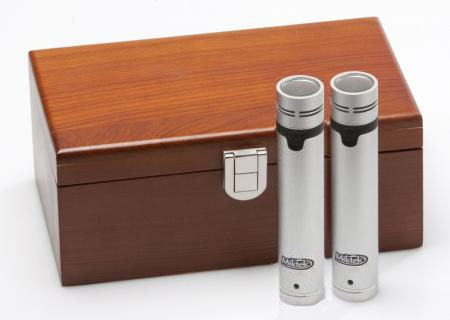

Miktek Audio C5MP
Matched Pair of Small Diaphragm Cardioid Pencil Condenser Microphones

OUR PART #:  C5MP

The Miktek C5 pencil condenser provides discerning engineers with a valuable new tool for the critical recording of acoustic instruments.
Learn More
Our Price: $1,399.00
List Price: $2,339.00
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Miktek Audio C5MP
Qty:
In Stock

Similar Products

The Miktek C5 pencil condenser provides discerning engineers with a valuable new tool for the critical recording of acoustic instruments. The C5, fitted with our MK5a, 0.5-inch cardioid capsule, produces a super-linear, full-bodied response. The capsule employs a 5-micron tensioned Mylar diaphragm, on which a 0.5-micron layer of evaporated gold is applied. Tight tolerances and special attention to precise machining of the backplate, and acoustical porting, produces an off-axis response that ensures the accuracy of the microphone.

The C5’s head amplifier has been designed around the AMI T5 transformer and, together with the implementation of high quality components including hand-selected transistors, offers a sweet response reminiscent of the iconic classic mics of the past. The Miktek C5 is perfect for recording acoustic instruments including violin, acoustic guitar, mandolin, dobro, brass, woodwind, and piano. The C5 produces excellent results on drums as overheads or hi-hat mics.

The Miktek C5 is hand built using components from the US, Europe and Asia, and is tested and packaged in Nashville, Tennessee, USA. Each microphone includes its serialized frequency response graph created during final testing.  The C5 is available as a single instrument packaged with a mic clip and wooden presentation box, or as a matched pair packaged with two clips in a wooden box and set inside an aluminum case. Matched-pair accessories include two shock mounts, windscreens and a stereo bar.

Features:

  • MK5a 0.5-inch Cardioid Capsule with 5-micron Mylar, Evaporated Gold Diaphragm
  • AMI T5 Transformer
  • Hand-selected Transistors
  • Individual serialized Frequency Response Graph
  • Includes a stereo matched pair with wood Presentation Case with Mic Clips, Shock-mounts, Windscreens, Stereo Bar Set, in a rugged aluminum carrying case

Specifications:

  • Type:  Small diaphragm condenser
  • Polar Patterns:  Cardioid
  • Frequency Response:  20~20000Hz
  • Sensitivity:  -32.4 dBV/Pa
  • Equivalent Noise Level:  17 dB
  • Dynamic Range:  109 dB
  • S/N Ratio:  77 dB
  • Max. SPL:  126 dB
  • Power Supply:  48V phantom
  • Power Consumption:  0.5mA
