Lowell JG-8X
White Screw-Mount Square Grille for 8" Speaker

OUR PART #:  JG-8X

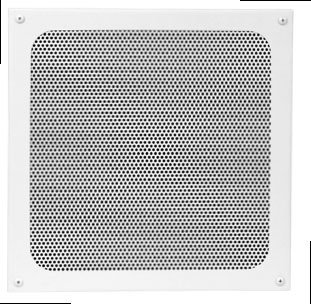

Model JG-8X is a square grille with beveled edges and a separate speaker-to-backbox adapter plate.
Learn More
Our Price: $37.87
List Price: $44.74
You save 15%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell JG-8X
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Model JG-8X is a square grille with beveled edges and a separate speaker-to-backbox adapter plate. The square grille and adapter are designed to mount an 8" speaker to a recessed or surface backbox. The JG-8X features a 20-gauge beveled frame with radius corner cutout and a welded 22-gauge perforated steel screen and white powder epoxy finish. It includes an adapter plate that’s fabricated from 21-gauge steel and is finished in black powder epoxy. The adapter includes corrosion-resistant 8-32 hardware to mount an 8" EIA speaker. The speaker/adapter assembly is engineered to direct-mount to a backbox with 8-32 x 1.5" screws (provided). The direct-mount installation method allows a high quality 8" speaker with substantial motor structure weight to be supported by the backbox instead of the grille. The non-loadbearing JG-8X grille then mounts using four 8-32 x 0.375" white screws. Order speaker and backbox separately.

Features:

  • 22-gauge screen, 20-gauge frame, 21-gauge adapter
  • 12.375" square
  • Mounting provisions: 4 screws, adapter with 4 screws
  • Beveled edges
  • Grille: white powder epoxy finish
  • Adapter: black powder epoxy finish

Compatible Components:

Backbox (recessed):

  • DX198
  • P68X
  • P68X-6
  • P68X-10
  • P875X
  • P875X-4
  • P875X-6

Backbox (surface):

  • CB84
  • CB88

Click to download
