John Hardy Company MPC-3000 Microphone Preamplifier Card
Superior Plug-In Replacement for Sony MXP3000-Series Preamplifiers

OUR PART #:  MPC-3000

A superior plug-in replacement for Sony MXP3000-series console mic preamps.
Learn More
Our Price: $347.20
List Price: $350.00
Write the first review.
John Hardy Company MPC-3000 Microphone Preamplifier Card
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

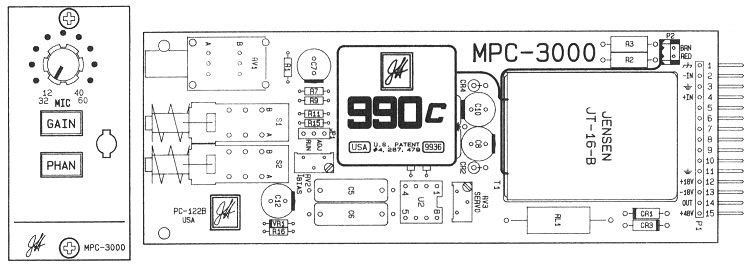

A superior plug-in replacement for Sony MXP3000-series console mic preamps. The MPC-3000 drastically improves performance by using a combination of the Jensen JT-16-B mic input transformer (Jensen's best mic input model), the 990C discrete class-A op-amp, and the total absence of coupling capacitors in the signal path. Just plug it in!

Features:

  • Jensen's JT-16-B Input Transformer
  • 990 Discrete Class-A Op-Amp
  • Elimination of all coupling capacitors from the signal path
  • 1% 100ppm Metal Film Resistors
  • Electrolytic Capacitors with a 105°C Temperature rating
  • Fully Sealed 25-turn Cermet Trim Pots

Specifications:

  • E.I.N., 20-20kHz unweighted
     150 Ohm source: -129 dBu
     0 Ohm source: -132 dBu
  • Maximum input level =20Hz: +9 dBu
  • Maximum output level at 990 output 75 Ohm load: +21 dBu
  • CMRR
     100Hz: 100 dB
     10kHz: 80 dB
  • Deviation from linear phase 20Hz-120kHz: <2 deg

THD:

  • 60dB gain, 10k Ohm load, +21dBu output
     10kHz: 0.005 %
     1kHz: 0.004 %
  • 40dB gain, 600 Ohm load, +21dBu output
     10kHz: 0.003 %
     1kHz: 0.003 %
  • 40dB gain, 75 Ohm load, +21dBu output
     10kHz: 0.030 %
     1kHz: 0.005 %
  • DC offset <100 µV
