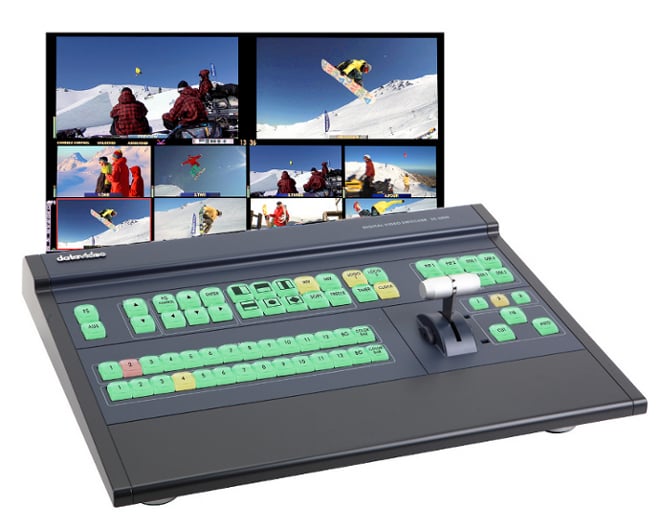

Datavideo Corporation SE2800-8
8 input HD Video Switcher

OUR PART #:  SE2800-8

The SE-2800 is a multi-definition switcher designed for the event or activity that needs up to eight SD or HD input sources.
Learn More
Our Price: $3,999.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation SE2800-8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SE-2800 is a multi-definition switcher designed for the event or activity that needs up to eight SD or HD input sources. Being one of our most flexible switching solutions, the SE-2800 is able to accept eight total inputs in varying combinations of Interlaced SD/HD-SDI, HDMI, and CV sources. (Up-conversion not supported)

Use eight SD/HD-SDI inputs, or use six SD/HD-SDI inputs and two HDMI inputs. Users can even accept four SD/HD-SDI sources, two CV sources, and two HDMI sources. This 8-input switcher is even upgradable to 12 inputs for even more versatility. SE-2800 ensures that your next switcher will accept all your input gear and then some! The SE-2800 Main Unit is available by itself or as a combo with the SE2800CP Keyboard.

Features:

  • SE & HD Support - SE-2800 supports both Standard Definition and High Definition signals.
  • Eight Flexible Inputs - Flexible combinations of input sources may be used from SD/HD-SDI, HDMI, and CV.
  • Upgradable to 12 Inputs - SE-2800 may be upgraded with 4 more BNC input ports to support a total of 12 inputs.
  • 2x HDMI Multi-View Preview Outputs - The SE-2800 Switcher has two HDMI-out ports for the multi-view preview, one for the switcher operator and one for the director.
  • PAL or NTSC Compatible - SE-2800 accepts input from PAL or NTSCsignals.

Specifications:

  • Video Inputs:
      -  8x SD/HD-SDI or
     -  6x SD/HD-SDI + 2x HDMI or
      -  4x SD/HD-SDI +4x CV or
      -  4x SD/HD-SDI + 2x CV + 2x HDMI or
     -  2x SD/HD-SDI + 4x CV + 2x HDMI
     -  Upgradable with 4 additional BNC ports to support 12 totalinputs
  • Accepted Resolutions:
      -  1080i 50/60
     -  576i 50
      -  480i 59.94/60
  • Video Outputs:
      -  2x HDMI (Multi-Preview)
      -  3x SD/HD-SDI
  • Audio Inputs: 4x Analog Balanced XLR
  • Audio Outputs: 2x Analog Balanced XLR (Supports Embedded Audio to SD/HD-SDI)
  • Control: RS-422 Control
  • Tally: D-SUB 15-Pin

What's Included:

  • SE-2800 Main Unit
  • SE-2800 Control Panel
  • AC/DC Power Adaptor & Cord
  • Instruction Manual
