Premier Mounts P5080F
Low-Profile Mount for Flat Panels, 300 lb (136 kg) Weight Capacity

OUR PART #  P5080F

Our Price: $132.30
List Price: $189.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Premier Mounts' P5080F is a low-profile flat mount for flat-panels up to 300 lb (136 kg) in weight.  Typically fits displays ranging from 50" - 80" or with a mounting pattern of 200 x 200mm to 1110 x 705mm.  It features post-installation leveling, lateral alignment, locking security barrels, and an open mounting frame for easy access to power sources and cables.

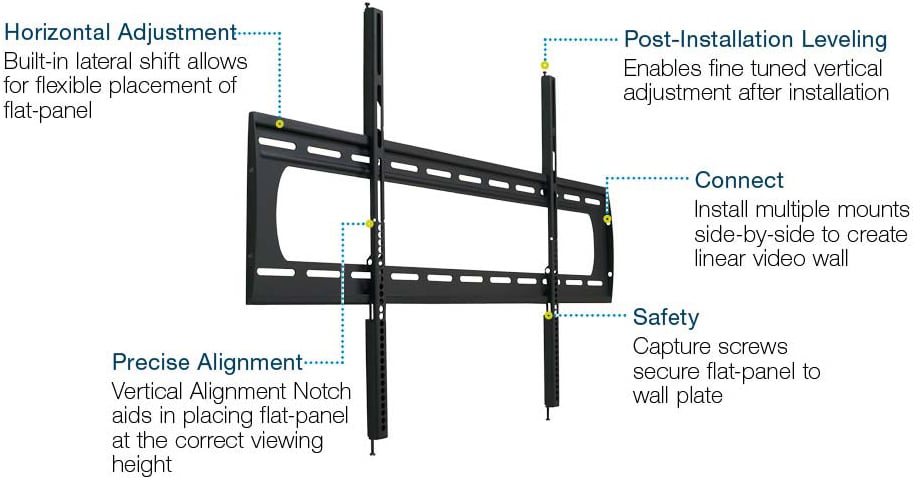

Features:

  • Mounting kit includes wood, concrete and steel stud attachment hardware
  • Lock-It™ security barrel included
  • Built-in lateral shift
  • Open design for easy cable and electrical access
  • Post-installation leveling system
  • Holds flat-panel less than 1 in. from the wall

Specifications:

  • Weight: 18.00 lbs (8.2 kg)
  • Weight Capacity: 300 lbs (136.4 kg)
  • Width: 45.21" (1148 mm)
  • Height: 28.35" (720 mm)
  • Depth: 0.96" (24 mm)
  • Mounting Pattern Type: Range
  • Mounting Pattern: 200 x 200 (Min) - 1110 x 705 (Max) mm
  • Display Range: 50.00" - 80.00"

Premier Mounts P5080F
Low-Profile Mount for Flat Panels, 300 lb (136 kg) Weight Capacity

OUR PART #  P5080F

Product Information:

Premier Mounts' P5080F is a low-profile flat mount for flat-panels up to 300 lb (136 kg) in weight.  Typically fits displays ranging from 50" - 80" or with a mounting pattern of 200 x 200mm to 1110 x 705mm.  It features post-installation leveling, lateral alignment, locking security barrels, and an open mounting frame for easy access to power sources and cables.

Features:

  • Mounting kit includes wood, concrete and steel stud attachment hardware
  • Lock-It™ security barrel included
  • Built-in lateral shift
  • Open design for easy cable and electrical access
  • Post-installation leveling system
  • Holds flat-panel less than 1 in. from the wall

Specifications:

  • Weight: 18.00 lbs (8.2 kg)
  • Weight Capacity: 300 lbs (136.4 kg)
  • Width: 45.21" (1148 mm)
  • Height: 28.35" (720 mm)
  • Depth: 0.96" (24 mm)
  • Mounting Pattern Type: Range
  • Mounting Pattern: 200 x 200 (Min) - 1110 x 705 (Max) mm
  • Display Range: 50.00" - 80.00"
