ART USBMIX
Mixer/Interface, 3 Channel

OUR PART #:  USBMIX

The ART USB Mix Three Channel Microphone, Instrument...
Learn More
Our Price: $69.00
List Price: $89.00
You save 22%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART USBMIX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

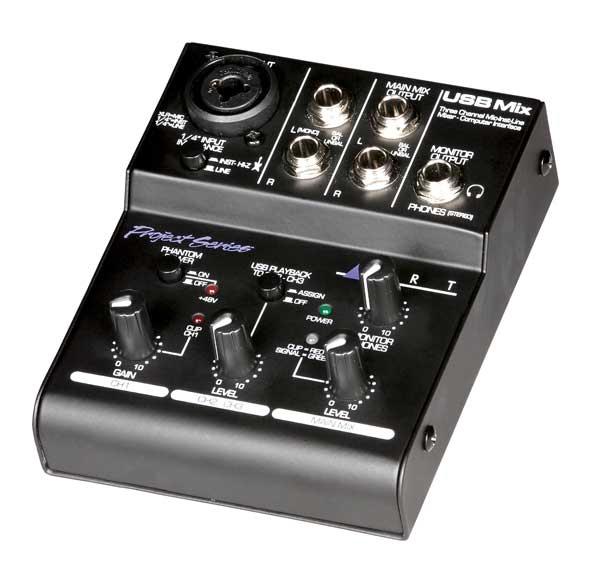

The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio. The USB Mix provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording.

Features:

  • USB powered, no external power supply needed when used with a computer
  • Balanced XLR or unbalanced ¼-inch Instrument inputs with switchable impedance
  • Switchable low noise +48V phantom power
  • Balanced ¼-inch TRS inputs for stereo or mono line-level sources
  • ¼-inch TRS output jacks work with balanced or unbalanced lines
  • Stereo ¼-inch TRS headphone jack with independent level control for output monitoring
  • Independent controls for both sets of inputs, main output, and headphone monitor
  • Green/Red LED signal/clip indicator
  • Switchable assignment of USB playback to channels 2 and 3
  • USB 2.0 compliant
  • USB cable, AC adapter, and Audacity recording software included

Specifications:

  • Input Connections:
      -  XLR balanced / 1/4" unbalanced "Combo" jack (ch1 input)
      -  1/4" balanced or unbalanced (Ch2-Ch3 inputs)
  • Output Connections:
      -  1/4" TRS balanced (Main Mix outputs)
      -  1/4" TRS stereo (Monitor output)
  • Input Impedance:
      -  240k Ohms (Inst-HiZ)
      -  20k Ohms (Line) (Ch 1, Ch2-Ch3 1/4" inputs)
      -  > 4k Ohms (Ch1 XLR input)
  • Output Impedance:
      -  <1k Ohms (balanced 1/4")
      -  <500 Ohms (unbalanced 1/4")
      -  100 Ohms (Monitor output)
  • Frequency Response: 20 Hz - 20 kHz (+0, -1 dB)
  • THD: <0.01% @ 1 kHz
  • CMRR:  > 54 dB typical
  • Phase Response: All connections are phase coherent
  • Signal to Noise Ratio: > 90 dB typical (Ref 0 dBu)
  • Equivalent Input Noise: -120 dBu typical (XLR balanced, max gain), -100 dBu typical (1/4")
  • Maximum Input Level: +4dBu (XLR input), +14dBu (1/4" input)
  • Maximum Output Level: +14dBu (Main Mix Outputs), +13dBu (Monitor output)
  • Maximum Gain (In to Main Out):
      -  +53dB (XLR)
      -  +32dB (1/4") Ch1 input
      -  +10dB (1/4") (Ch2-Ch3 inputs)
  • Maximum Gain (In to USB):
      -  +44dB (XLR)
      -  +23dB (1/4") (Ch1 input)
      -  +1dB (1/4") (Ch2-Ch3 inputs)
  • Maximum Gain (USB to Out):
      -  +14dB (Main Mix outputs)
      -  +13dB (Monitor output)
  • Phantom Power:  Switch selectable, +48V DC, filtered, current limited
  • A/D-D/A:
      -  16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
      -  0.4 ms A/D latency @ 44.1 kHz
  • Computer Interface:
      -  USB 2.0 compliant
      -  Windows 7, Vista, XP, 2000, ME, 98SE
      -  Mac OS 9.1 / OS X computers with native USB support, Linux
  • Chassis Type: All steel black finish
  • Power Requirements:  5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical
  • Dimensions:  1.6" x 4.0" x 4.75" (41mm x 101mm x 121mm)
  • Weight:  1.1 lbs (0.5 kg) (Weight includes power supply and USB cable)
