Audient ASP510V2 Surround Controller

OUR PART #: ASP510V2

Copied to clipboard

Add comprehensive, easy to use Surround Sound Monitoring to your DAW or console. ...Read more

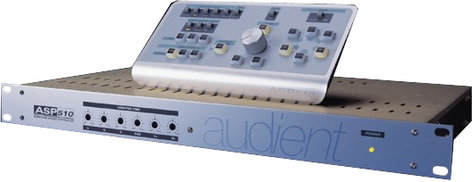

Audient ASP510V2 Surround Controller Image 1
Audient ASP510V2 Surround Controller
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Add comprehensive, easy to use Surround Sound Monitoring to your DAW or console. Connecting to the outputs of your DAW or the buses of your console, the ASP510 integrates easily and seamlessly to provide comprehensive monitoring control of multiple surround sound formats including: 5.1, LCRS, Dolby Surround, DVD-Video, DVD-Audio, DTS, and SACD.

Applications:

  • Surround sound music production
  • DVD-V and DVD-A authoring
  • Film and Video Post-Production
  • Film Production and Foley
  • SACD authoring
  • DTS authoring
  • Video games production
  • Digital television
  • Audio visual production
  • Multi-channel OBs

Audient ASP510V2 Features:

  • 6 preset MONITOR FORMATS.
  • Supports three 5.1 SURROUND and three STEREO sources.
  • 8 inputs from console ( 5.1 SURROUND plus STEREO).
  • 8 outputs to recorders ( 5.1 SURROUND plus STEREO).
  • Switchable ENCODER/DECODER insertion.
  • 6 speaker outputs, each with LEVEL TRIM.
  • Individual speaker CUT/ISOLATE functions.
  • Universal console SOLO and MONITOR system interface.
  • User definable Monitor REFERENCE and DIM levels.
  • Internal PINK NOISE generator.
  • GUIDE track input.
  • Ergonomic control surface with clear status indication.

Audient ASP510V2 Specifications:

  • Nominal levels: +4 dBu
  • Maximum input: > +20 dBu
  • Maximum output: >+20 dBu
  • Frequency response: ±0.25 dB, 22 Hz -22 kHz
  • THD and noise: @+4 dBu, 1 kHz
  • Noise: 22 Hz - 22 kHz, -92dB
  • Crosstalk (source/source): 1 kHz >80 dB
  • Channel tracking: 0 to -24 dB ±0.25 dB
  • System Interfaces:
    • 25-pin D-type females for:
      • 5.1 Surround play A and B
      • 5.1 Surround bus inputs
      • Stereo record/transmission & play
      • Console interface Decoder
    • 25pin D-type males for:
      • 5.1 Surround record A and B
      • Speaker outputs
      • Encoder
    • RJ45 for remote/rack link
  • Dimensions:
    • Rack unit: 1U x 280 mm
    • Remote: W 230 mm D 120 mm H 40 mm
  • Power Requirements: 115/230V at 50-60 Hz (50VA)
