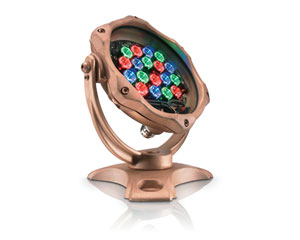

Philips Color Kinetics 116-000024-00
C-Splash 2 with 22° Frosted Lens

OUR PART #  116-000024-00

Our Price: $1,285.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Philips Color Kinetics' C-Splash 2 is an ultra-thin, submersible fixture designed to provide vibrant color and color-changing light in fresh and saltwater locations to a depth of 15 ft (4.6 m). With its watertight cast brass housing and silicon bronze adjusting hardware, C-Splash 2 is perfect for water-based applications such as fountains and theme park installations, as well as for applications situated in harsh environments.

Philips Color Kinetics C-Splash 2 Features:

  • Designed for submersion in fresh or salt water to adepth of 15 ft (4.6 m). This IP68-rated fixture is also able to withstand water treated with bromine or chlorine.
  • The frosted tempered glass lens offers a soft-edgebeam of light at 22°, while the clear glass lens offers extended light projection at 10°.
  • 60 ft (18.3 m) unified power and data cable minimizes wiring. C-Splash 2 is intended for use with PDS-150e and PDS-60 24V power /data supplies.
  • Works seamlessly with Philips controllers, including iPlayer 3 and Light System Manager, as well as third-party DMX controllers.
  • Locking base and pivot allows vertical and horizontal rotation through a full 360°.
  • Offers the full range of 16.7 million RGB colors and an output of over 500 lumens. Long-life LEDs significantly reduce or eliminate required maintenance, a major advantage for underwater installations.

Philips Color Kinetics C-Splash 2 Specifications:

  • Beam Angle: 22°
  • Lumens*: 515
    *Lumenmeasurement complies with IES LM-79-08
  • Lumen Maintenance: 50,000+ hours L50 @ 50° Celsius (full output)
  • LED Channels: Red/Green/Blue
  • Input Voltage: 24 VDC cia PDS-150e, or PDS-60
  • Power Consumption: 25W maximum at full output, steadystate
  • Interface:
    • PDS-150e 24V (DMX or Ethernet)
    • PDS-60 24V (DMX, Pre-programmed, or Ethernet)
  • Control System: Philips Color Kinetics full range of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, or third-party controllers
  • Dimensions (HxWxD): 10.3" x 9" x 1.6" (262 x 229 x 41 mm)
  • Weight: 22 lbs (10 kg)
  • Housing: Cast brass
  • Lens: Tempered Round Glass
  • Fixture Connections: 60 ft. (18.3 m) unified power/data cable
  • Temperature Ranges:
    • 40° – 122° F (-40° – 50° C) Operating
    • 4° –122° F (-20° – 50° C) Startup
    • 40° – 176° F (-40° – 80° C) Storage
  • Humidity: 0 – 100%
  • Cable Length: 60 ft (18.3 m) standard, 150 ft (45.7 m) maximum
    • 400 ft (121.9 m) total per power / data supply
  • Maximum Fixtures Per: Power / Data Supply:
    • PDS-150e 24V: 6 (1 perport)
    • PDS-60 24V: 2 (1 per port)

Philips Color Kinetics 116-000024-00
C-Splash 2 with 22° Frosted Lens

OUR PART #  116-000024-00

Product Information:

Philips Color Kinetics' C-Splash 2 is an ultra-thin, submersible fixture designed to provide vibrant color and color-changing light in fresh and saltwater locations to a depth of 15 ft (4.6 m). With its watertight cast brass housing and silicon bronze adjusting hardware, C-Splash 2 is perfect for water-based applications such as fountains and theme park installations, as well as for applications situated in harsh environments.

Philips Color Kinetics C-Splash 2 Features:

  • Designed for submersion in fresh or salt water to adepth of 15 ft (4.6 m). This IP68-rated fixture is also able to withstand water treated with bromine or chlorine.
  • The frosted tempered glass lens offers a soft-edgebeam of light at 22°, while the clear glass lens offers extended light projection at 10°.
  • 60 ft (18.3 m) unified power and data cable minimizes wiring. C-Splash 2 is intended for use with PDS-150e and PDS-60 24V power /data supplies.
  • Works seamlessly with Philips controllers, including iPlayer 3 and Light System Manager, as well as third-party DMX controllers.
  • Locking base and pivot allows vertical and horizontal rotation through a full 360°.
  • Offers the full range of 16.7 million RGB colors and an output of over 500 lumens. Long-life LEDs significantly reduce or eliminate required maintenance, a major advantage for underwater installations.

Philips Color Kinetics C-Splash 2 Specifications:

  • Beam Angle: 22°
  • Lumens*: 515
    *Lumenmeasurement complies with IES LM-79-08
  • Lumen Maintenance: 50,000+ hours L50 @ 50° Celsius (full output)
  • LED Channels: Red/Green/Blue
  • Input Voltage: 24 VDC cia PDS-150e, or PDS-60
  • Power Consumption: 25W maximum at full output, steadystate
  • Interface:
    • PDS-150e 24V (DMX or Ethernet)
    • PDS-60 24V (DMX, Pre-programmed, or Ethernet)
  • Control System: Philips Color Kinetics full range of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, or third-party controllers
  • Dimensions (HxWxD): 10.3" x 9" x 1.6" (262 x 229 x 41 mm)
  • Weight: 22 lbs (10 kg)
  • Housing: Cast brass
  • Lens: Tempered Round Glass
  • Fixture Connections: 60 ft. (18.3 m) unified power/data cable
  • Temperature Ranges:
    • 40° – 122° F (-40° – 50° C) Operating
    • 4° –122° F (-20° – 50° C) Startup
    • 40° – 176° F (-40° – 80° C) Storage
  • Humidity: 0 – 100%
  • Cable Length: 60 ft (18.3 m) standard, 150 ft (45.7 m) maximum
    • 400 ft (121.9 m) total per power / data supply
  • Maximum Fixtures Per: Power / Data Supply:
    • PDS-150e 24V: 6 (1 perport)
    • PDS-60 24V: 2 (1 per port)
