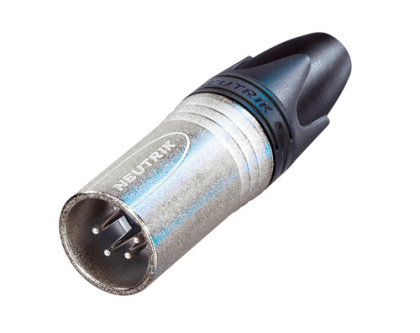

Neutrik NC4MXX 4-pin XLRM Cable Connector

Neutrik's NC4MXX is a 4-pole XLR male cable connector with nickel housing and silver contacts.

Features:

• Male connector with improved locking recess without "window", more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well proteced against any damage
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications

• Connection Type: XLR
• Gender: male
• Capacitance between contacts: < /= 7 pF
• Contact resistance: < /= 3 mO (inner)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GO (initial)
• Rated current per contact: 10 A
• Rated voltage: 50 V
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: < /= 20 N
• Withdrawal force: < /= 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.5 mm²
• Wiresize: max. 16 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Boot: Polyurethane
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 0.2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
