JBL CBT 200LA-1
32x 2" 2600W White Line Array Column Speaker in White

OUR PART #:  CBT200LA-1-WH

The JBL CBT 200LA-1, 200 cm Tall Constant Beamwidth Technology™ Line Array Column Speaker with Thirty-Two 50 mm (2 in) Drivers...
Learn More
Our Price: $1,720.00
List Price: $2,150.00
You save 20%!
Write the first review.
JBL CBT 200LA-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JBL CBT 200LA-1, 200 cm Tall Constant Beamwidth Technology™ Line Array Column Speaker with Thirty-Two 50 mm (2 in) Drivers, represents a breakthrough in pattern control consistency and coverage options, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent coverage without the inconsistent vertical beaming, uneven coverage, and out-of-coverage lobing that are typical of both powered and non-powered column speakers.

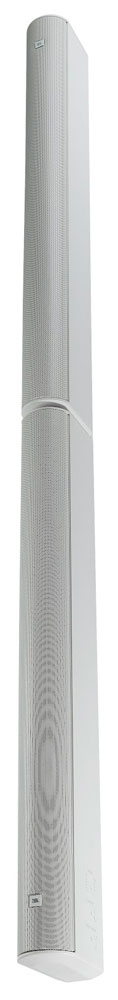

NOTE: Shown above in black, comes in white .

JBL CBT 200LA-1 Features:

  • Patented Constant Beamwidth Technology™ provides true wide-band constant directivity coverage up to the highest frequencies and reduces out-of-coverage lobing.
  • 200 cm (6.6") height extends pattern control to include lower frequencies.
  • Vertical pattern coverage switchable between 30° and 15° for medium or long-throw coverage.
  • Asymmetrical Progressive-Gradient vertical coverage setting directs more sound toward the far area of the listening space, making front to back sound levels more consistent. Progressive-Gradient extent is adjustable.
  • Narrow width of 98.5 mm (3.8") fits visually into a wide variety of applications.
  • Dynamic Sonic-Guard™ low-audibility overload protection.
  • Swivel (pan)/tilt wall bracket included
  • Built-in 70V/100V transformers, plus direct capability.

JBL CBT 200LA-1 Specifications:

  • Components: Thirty-two 50 mm (2") Full-Range Drivers
  • Frequency Range (-10 dB): 80 Hz – 20 kHz
  • Frequency Response (±3 dB): 130 Hz – 18 kHz (narrow coverage, music mode setting)
  • Coverage - Vertical:
    • Narrow Mode: 15° (500 Hz – 16kHz, +15°/-2° [<60° down to 220 Hz, <90° down to 140 Hz])
    • Broad Mode: 30° (400 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, < 90° down to 140 Hz])
    • Asymmetrical Progressive-Gradient Mode: (Top speaker module set at “Narrow” and bottom speaker module at “Broad”, for “J-type” coverage, sending higher sound levels toward the far area of the listening space): 22.° (+7° from aiming axis up; -15° from aiming axis down, 300 Hz – 12kHz, +15°/-8°, [<60° down to 220 Hz, <90° down to 140 Hz])
  • Coverage - Horizontal: 150° (ave, 1 kHz – 4 kHz, ±20°)
  • Sensitivity - Narrow: (speech mode): 95 dB (2 kHz – 5kHz) (music mode): 92 dB (150 Hz – 18 kHz)
  • Sensitivity - Broad: (speech mode): 93 dB (2 kHz – 5kHz) (music mode): 90 dB (150 Hz– 18 kHz)
  • Sensitivity - Asymmetrical Progressive-Gradient Mode:
    • (on-axis): (speech mode): 94 dB (2 kHz – 5kHz)
    • (music mode): 91 dB (150 Hz – 18 kHz)
  • Nominal Impedance (direct): 8 Ohm per half (top and bottom) for 4 ohms total (in thru mode). Min-Z for system = 2.9 Ohm.
  • Hookup: Ensure identical polarity of hookup – for proper functioning, the two loudspeaker modules (top and bottom) must be hooked up in same polarity. Parallel hookup at the two sets of back panel input terminals is recommended.
  • Power Capacity (thru setting):
    • 650W (2600W peak), 2 hrs
    • 400W (1600W peak) 100 hrs
  • Max SPL - Narrow: (speech mode): 123 dB cont ave (129 dB peak) (music mode): 120 dB cont ave (126 dB peak)
  • Max SPL - Broad: (speech mode): 121 dB cont ave (127 dB peak) (music mode): 118 dB cont ave (124 dB peak)
  • Max SPL - Asymmetrical Progressive-Gradient Mode:
    • (on-axis): (speech mode): 122 dB cont ave (128 dB peak)
    • (music mode): 119 dB cont ave (125 dB peak)
  • 70V/100V Transformer Type: Set individually per speaker module (top and bottom): 120W, 60W, 30W (15W at 70V only), and direct 8 Ohm, via switch. Total (with top & bottom set to same): 240W, 120W, 60W (30W at 70V only) and direct 4 Ohm. Max. insertion loss less than 1 dB at any tap.
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Connectors: Two (one for top half and one for bottom half), screw-down terminal strip, zinc-plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), or bare wire (up to 12 AWC/2.5 mm2)
  • Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr salt spray-resistant.
  • Configuration: Two pieces (top and bottom half), each 100 cm tall, connected together via Coupler Plate. Top/bottom orientation of each piece must be observed.
  • Insert Points: 28 M6 insert points on back panel (36 total with 8 center points being utilized by the Coupler Plate).
  • Mounting: Included swivel (pan) / tilt wall bracket(must be mounted to threaded points on Coupler Plate) provides continuously variable ±80° left-right swivel aiming (at up to ±5° up/down tilt), continuously adjustable ±10° up/down tilt, as well as 5° fixed increment tilt angles to ±10°.  28 available threaded mounting points (M6 diameter x M1 thread pitch x 17 mm deep) located on back panel. Threaded mounting points can be utilized for suspension. Compatible with OmniMount 30.0 brackets
  • Dimensions: 78.8" H x 3.8" W x 6" D (2000 x 98.5 x 153 mm)
  • Net Weight: 33 lbs (14.6 kg)
  • Included Accessories: Swivel (pan) / tilt wall bracket, Coupler plate
  • Optional Accessories:
    • MTC-PC2 terminal panel cover
    • MTC-CBT-FM1 flush-mount low-profile wall-mount bracket (2 pieces required)
    • MTC-CBT-SMB1 stand-mount bracket for use with 35 mm speaker stands (heavy-duty stand required)
