Neutrik NC4MXX-B 4-pin XLRM Cable Connector, Black with Gold Contacts

OUR PART #: NC4MXX-B MFR #: NC4MXX-B

Copied to clipboard

Neutrik's NC4MXX-B is a 4-pole XLR male cable connector with black metal housing and gold contacts. ...Read more

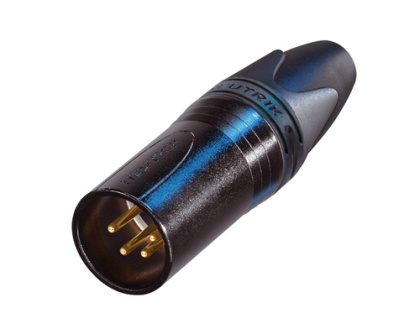

Neutrik NC4MXX-B 4-pin XLRM Cable Connector, Black With Gold Contacts Image 1
G8uFiiQvW-Y?rel=0
1 Video
Neutrik NC4MXX-B 4-pin XLRM Cable Connector, Black With Gold Contacts
Our Price: $5.20
List Price: $6.07
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How
More on Order! Item usually available to ship in 5-9 Business days. Place your order now to reserve your place in line. Call our Sales Pros at 800-356-5844.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Neutrik's NC4MXX-B is a 4-pole XLR male cable connector with black metal housing and gold contacts.

Features:

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications

  • Connection Type: XLR
  • Gender: male
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 3 mO (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: 10 A
  • Rated voltage: 50 V
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm²
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Boot: Polyurethane
  • Bushing: Polyamide (PA 6 15% GR)
  • Contact plating: 0.2 µm AuCo over 2 µm NiP15 (Tribor®)
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element :Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
