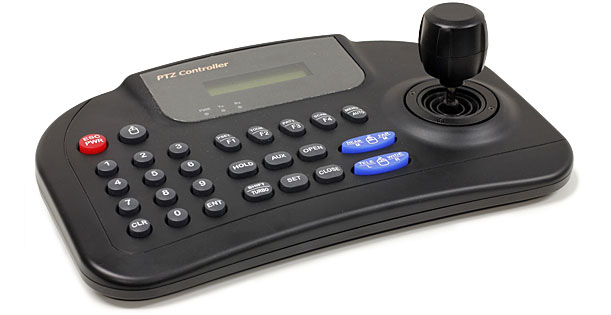

Marshall Electronics VS-TKC-100
PTZ Keyboard Controller

OUR PART #:  VS-TKC-100

The Marshall PTZ Controller, VS-TKC-100 is designed as a Hardware Pan, Tilt...
Learn More
Our Price: $356.15
List Price: $419.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics VS-TKC-100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall PTZ Controller, VS-TKC-100 is designed as a Hardware Pan, Tilt, Zoom and Focus Controller designed to work with Marshall Cameras under Marshall Video Management Software Control.

It operates under either Battery Power (9V) or AC with the included Marshall AC Adapter (12V).

Marshall Electronics VS-TKC-100 Features:

  • USB mouse function
  • Operates with a 9V battery
  • Controls up to 255 cameras
  • Multiple protocols supported in each channel
  • RS-485 / RS-422 communication (Tx: 3 port, TRx: 1 port)
  • Programmable user preferences
    (Preset, Tour, Pattern, etc.)
  • Built-in 3-Axis proportional joystick
  • Easy upload of programming data via serial communication
  • Built-in LCD with 2 lines of characters
  • User password support
  • Programmable transmission speed for each ID (2.4~57.6Kbps)

Marshall Electronics VS-TKC-100 Specifications:

  • Keyboard Communication:
    • Interface: RS-485 / RS-422
    • Operation distance: 4000ft (1.2km) on 24 AWG wire
    • Protocol: Multiple
    • (Pelco-D, Pelco-P, Etc.) (Baud rate selectable)
  • Connector Type Data:  TERMINAL BLOCK (8p)
  • Keyboard Button:
    • Rubber button
    • Numeric keypad and camera function keys
  • Joystick:  3-axis, variable speed with zoom
  • Input Voltage:  DC 12V or 9V battery (Battery mode)
  • Power Consumption:  Max. 140mA
  • LCD Display:  Graphic Display 16 characters x 2 lines
  • Operating Temperature:  32° F ~ 113° F (0° C ~ 45° C)
  • Humidity:  10% ~ 70% Non-condensing
  • Dimensions (WHD):  11.0" x 3.9" x 7.1" (280 x 100.08 x 179.3 mm)
  • Weight:  ˜ 1.5 lbs. (0.68 kg)
  • In the package:
    • VS-TKC-100 Keyboard
    • AC Power Adapter (100-240V)
    • USB Cable
    • Manual
    • Terminal Block (8p)
Power Supply for VS-TKC-100
Marshall Electronics V-PS12V-2.0A-U Power Supply for VS-TKC-100
Marshall Electronics' V-PS12V-2.0A-U is a 12V DC power supply (2.0A) for Marshall's VS-TKC-100 PTZ keyboard controller.
