OUR PART # ARENA-HL-300-LCR

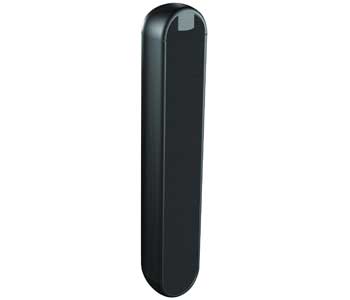

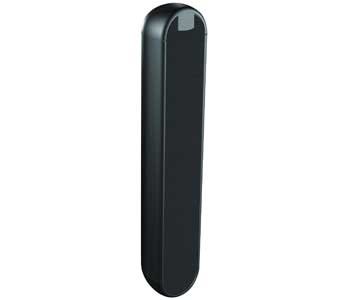

The Arena HighLine 300 is designed primarily as a low profile, full range loudspeaker for use in conjunction with Plasma or LCD flat screens. The supplied bracket system and cable management ensure a close to wall mounting and a visual effect that blends with the décor; important in high style installations such as lounges, bars, hotels and boardrooms.
The HighLine 300 can be used as left, right and centre around the screen, while low frequency reinforcement can be provided by adding the Tannoy V Series VS10 BP subwoofer in conjunction with the TDX1 electronic system controller.
The frequency response is 69Hz to 62kHz (-10dB from rated sensitivity, measured on axis in an anechoic chamber) with no equalization. Sensitivity is 85dB at 1W @ 1metre (1W = 2.83V for 8 Ohms) and long-term power handling capacity (as defined in EIA-426B test) is 60W, while the recommended amplifier power is 120W. The nominal system impedance is 8 Ohms.
For maximum acoustic integrity of the drive units the already robust, thick walled aluminium extruded cabinet is further internally braced, with Tannoy DMT™ (Differential Material Technology) at strategic points throughout its length to minimise any cabinet resonance; this to ensure fully optimised reproduction.
Highline 300 is lavishly finished in silky smooth matt silver or black and supplied with flush mounting hardware as standard. Optional accessory hardware includes a floor stand or table mount.
The D’Appolito driver configuration of four 75mm (3.00”) mid and bass drivers and a 19mm (0.75”) SuperTweeter™ high frequency unit have a controlled coverage pattern of 140° x 90° (1kHz to 6kHz).
This controlled dispersion characteristic directs sound into the desired space while minimising reflections from the ceiling; this therefore making the HighLine 300 also an ideal high quality music and speech reinforcement speaker for acoustically reverberant spaces, such as houses of worship and retail premises.
