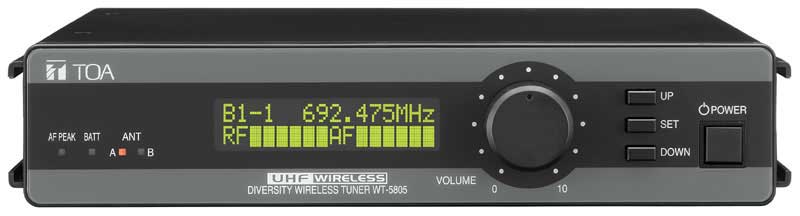

TOA WT-5805
5000 Series UHF Wireless Receiver

OUR PART #:  WT5805

The TOA WT-5805 wireless tuner is a PLL-synthesizer-controlled double-superheterodyne diversity tuner for UHF wireless systems.
Learn More
Selected Model Price: $337.00
List Price: $417.00
Save up to 19%!
Write the first review.
TOA WT-5805
Select a Model: (shipping times are approximate)

Related Products

The TOA WT-5805 wireless tuner is a PLL-synthesizer-controlled double-superheterodyne diversity tuner for UHF wireless systems. It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.

TOA WT-5805 Includes:

  • UHF wireless receiver
  • 1x AC adapter
  • 2x Whip antennae
  • 4x Rubber feet

TOA WT-5805 Specifications:

  • Power Source: AC mains (supplied AC adapter must be used)
  • Power Consumption: 200 mA (12 V DC)
  • Receiving Frequency: 576 - 932 MHz (*2), UHF
  • Channel Selectable: 64 selectable frequencies
  • Receiving System: Double super-heterodyne
  • Diversity System: Space diversity
  • Mixing Output: MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ohms phone jack (unbalanced), 600 Ohms XLR-3-32 type connector (balanced)
  • Mixing Input: -20 dB (*1), 10 kOhm, unbalanced, phone jack
  • Antenna Input: 75 Ohms, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)
  • Receiving Sensitivity: 90 dB or more, Signal to Noise ratio (20 dBµV input, 40 kHz deviation)
  • Squelch Sensitivity : 16 - 40 dBµV variable
  • Squelch System: Using together of noise SQ, carrier SQ and tone SQ
  • Tone Frequency: 32.768 kHz
  • Indicator: Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm
  • Channel Check: Usable frequencies scanning
  • Signal to Noise Ratio: 110 dB or more (A-weight, unbalanced output)
  • Harmonic Distortion: 1 % or less (typical)
  • Frequency Response: 100 Hz - 15 kHz, ±3 dB
  • Operating Temperature: 14 F to 122 F (-10 C to +50 C)
  • Operating Humidity: 30 % to 85 % RH (no condensation)
  • Finish: Resin, black
  • Dimensions: 8.27" W x 1.73" H x 8.07" D (210 x 44 x 205.1 mm)
  • Weight: 1.54 lb (700 g)
  • Mounting bracket kit options (both sold separately):
    • MB-WT3 (for rack mounting one WT-5805 unit)
    • MB-WT4 (for rack mounting two WT-5805 units)
