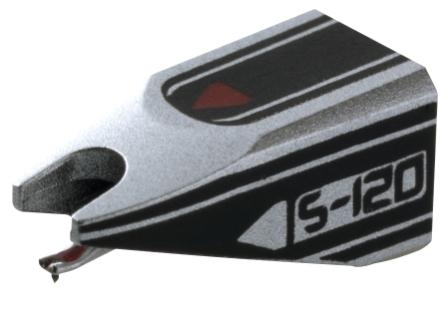

Ortofon Inc S120
Replacement Stylus

OUR PART #:  STYLUS-S120

The Ortofon-Serato S-120 represents a new way of constructing and designing cartridges.
Learn More
Our Price: $59.99
List Price: $74.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc S120
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ortofon-Serato S-120 represents a new way of constructing and designing cartridges.  Its patent pending technology, called asymmetric suspension, takes the cartridge performance to the next level.  Its superior tracking force ensures the S-120 stays in the groove even under extreme live performance conditions.

In addition, its design achieves a low level of record wear, which helps protect your valuable vinyl.  On top of this, the S-120 is capable of providing a level of sound quality never thought possible from a modern DJ cartridge.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 10 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-18,000 Hz
  • Frequency response: 20-18,000 Hz +3/- 2dB
  • Tracking ability at 315 Hz at recomm. tracking force: 120 µm
  • Compliance, dynamic lateral: 11 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 1.5-10.0 g (15-100 mN)
  • Tracking force, recommended: 4.0 g (40 mN)
  • Internal impedance, DC resistance: 1680 Ohm
  • Internal inductance: 920 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • S-120 Cartridge weight: 18.5 g
